Seat Position Sensor-Driver Horizontal - White 3 Way

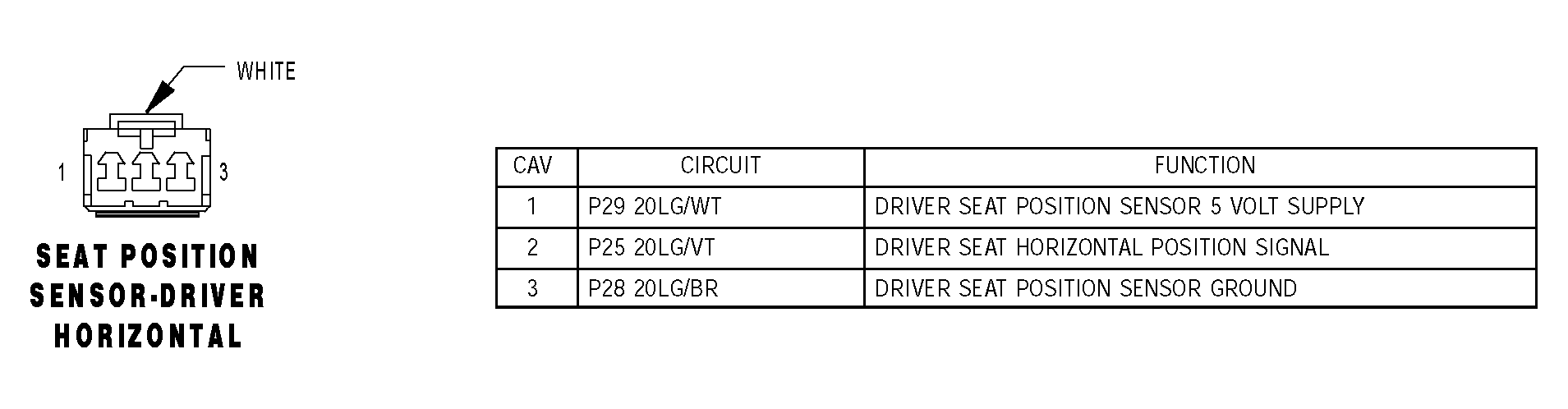

Fig 1: Identifying Seat Position Sensor-Driver Horizontal - White 3 Way Connector Pinouts

G04528338

Courtesy of DAIMLERCHRYSLER CORP.
