Seat Position Sensor-Driver Front Riser - White 3 Way

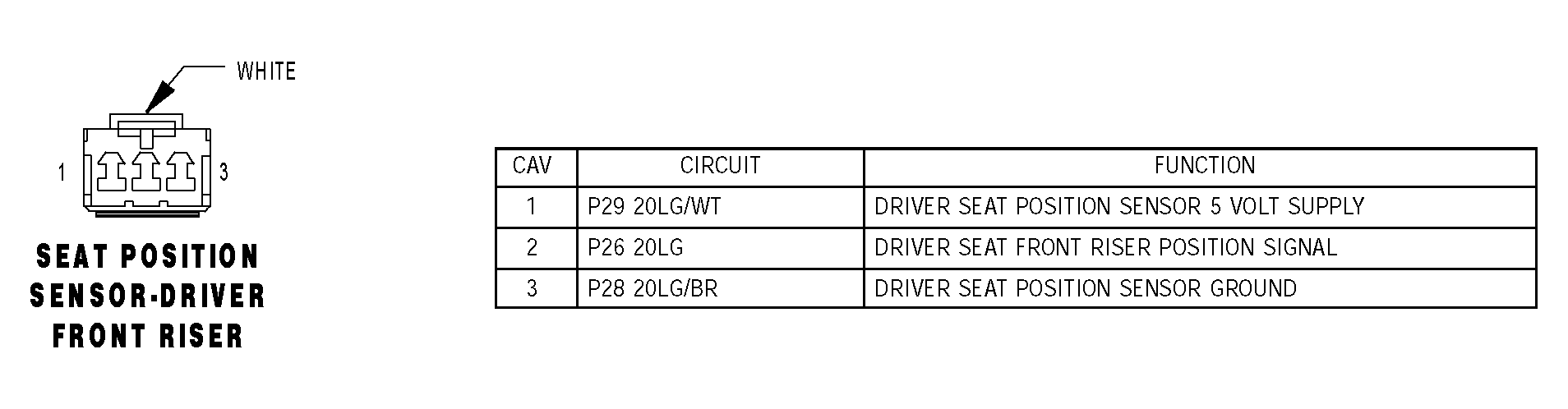

Fig 1: Identifying Seat Position Sensor-Driver Front Riser - White 3 Way Connector Pinouts

G04528337

Courtesy of DAIMLERCHRYSLER CORP.
