Seat Belt TENSIONER-Passenger - Yellow 2 Way

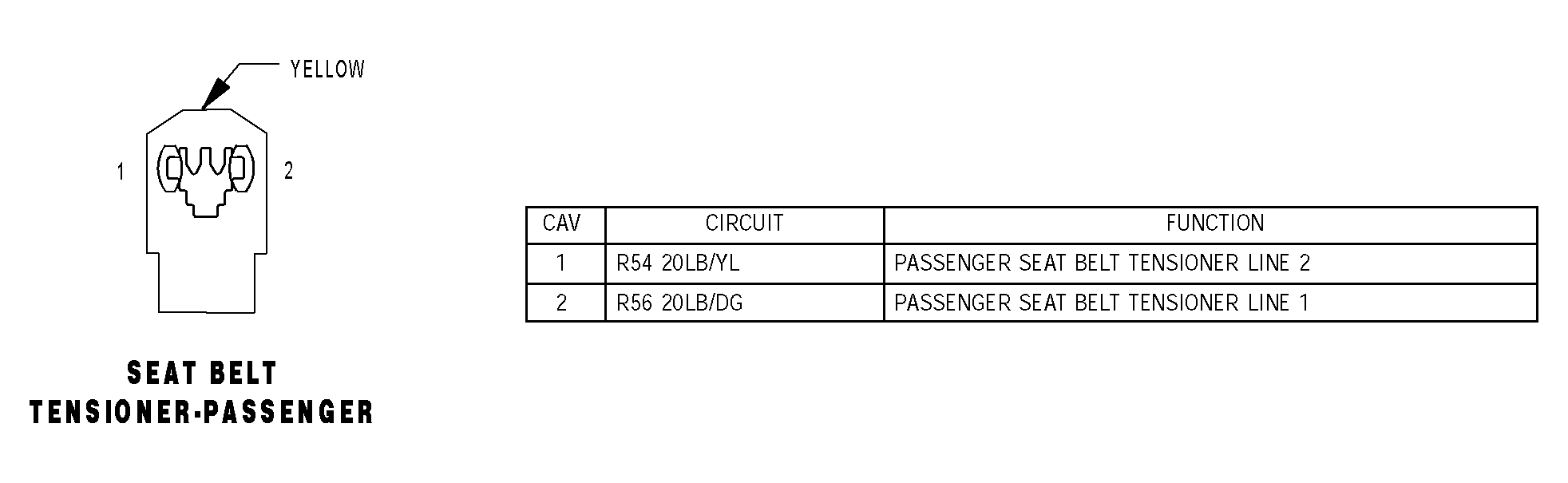

Fig 1: Identifying Seat Belt Tensioner-Passenger - Yellow 2 Way Connector Pinouts

G04528336

Courtesy of DAIMLERCHRYSLER CORP.
