Satellite Radio Multiplexer C2 - DK. Gray 10 Way

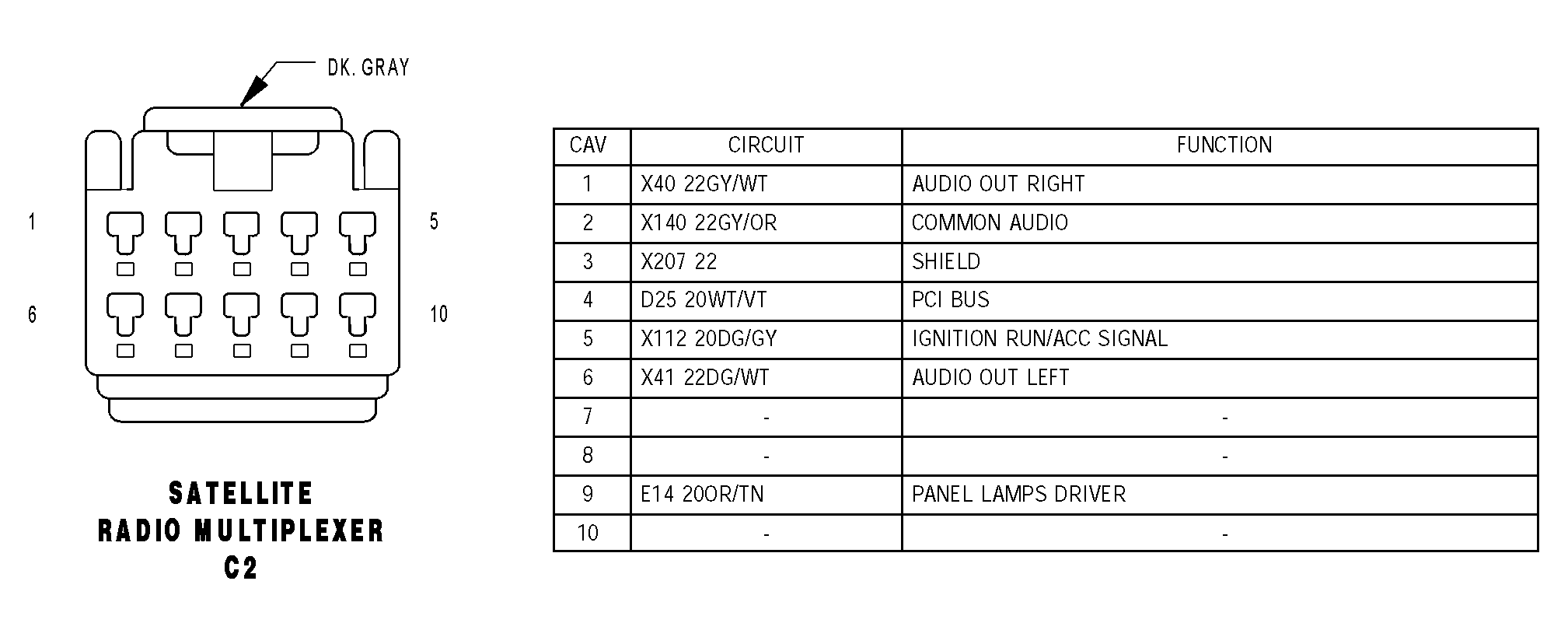

Fig 1: Identifying Satellite Radio Multiplexer C2 - Dk. Gray 10 Way Connector Pinouts

G04528333

Courtesy of DAIMLERCHRYSLER CORP.
