Satellite Radio Multiplexer C1 - DK. Gray 22 Way

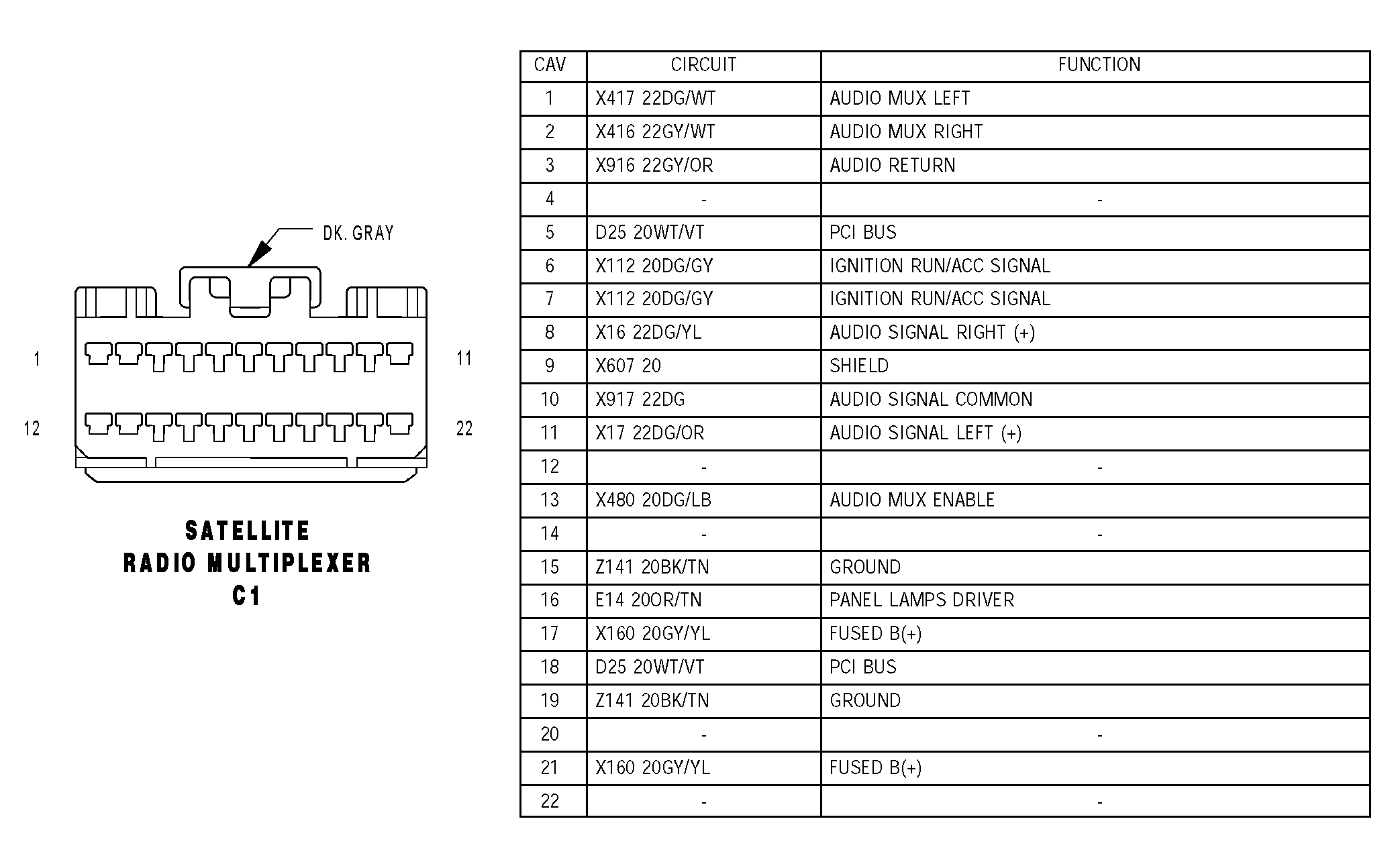

Fig 1: Identifying Satellite Radio Multiplexer C1 - Dk. Gray 22 Way Connector Pinouts
G04528332Courtesy of DAIMLERCHRYSLER CORP.
