Reading/Courtesy Lamp-Left Middle - Gray 3 Way

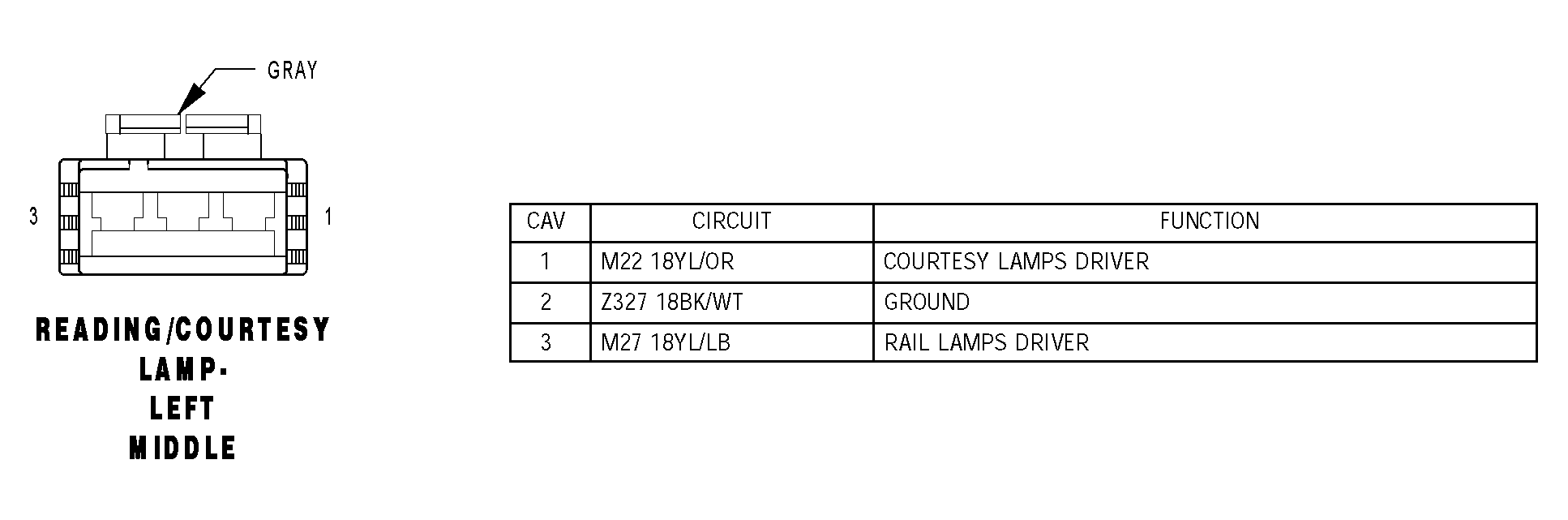

Fig 1: Identifying Reading/Courtesy Lamp-Left Middle - Gray 3 Way Connector Pinouts

G04528324

Courtesy of DAIMLERCHRYSLER CORP.
