Radio C2 (DVD/Cd Changer) - DK. Gray 10 Way

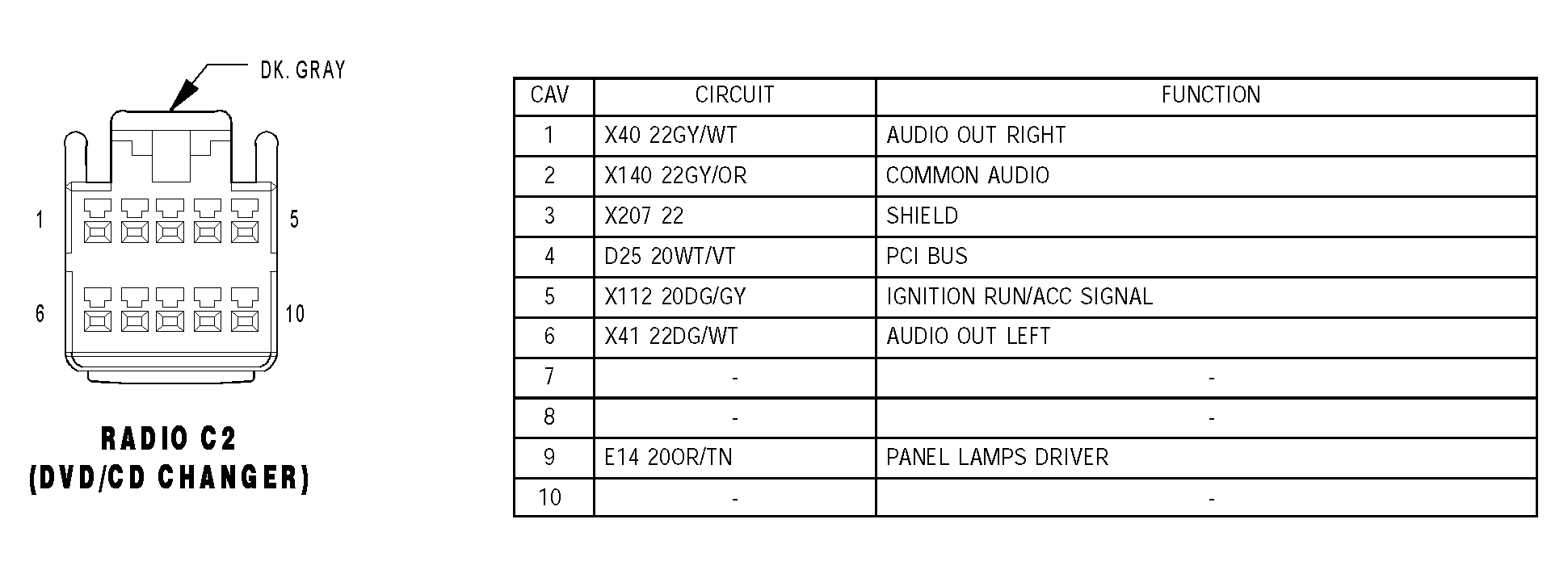

Fig 1: Identifying Radio C2 (DVD/CD Changer) - DK. Gray 10 Way Connector Pinouts

G04528321

Courtesy of DAIMLERCHRYSLER CORP.
