Radio C1 (Except Base) - DK. Gray 22 Way

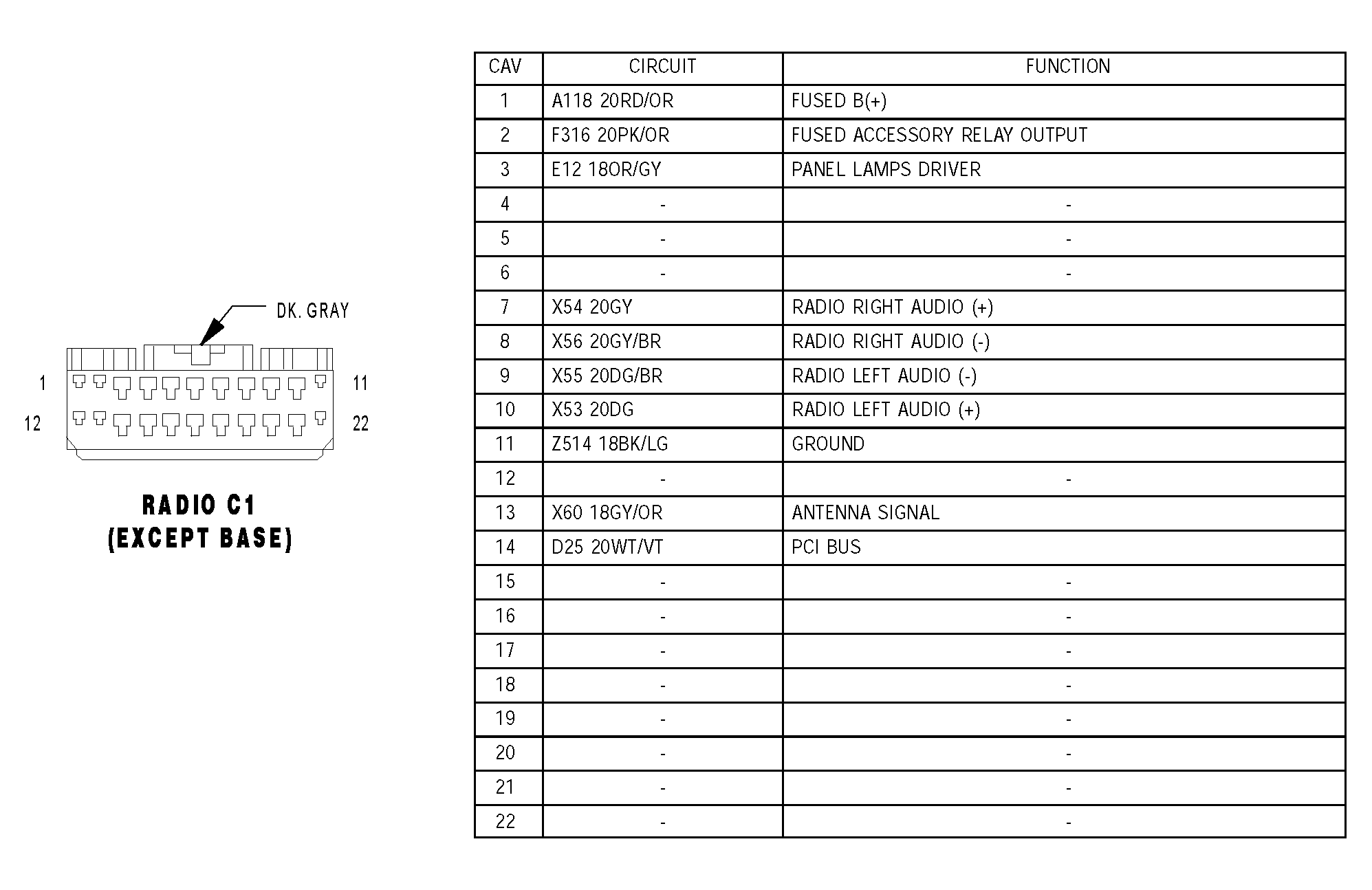

Fig 1: Identifying Radio C1 (Except Base) - Dk. Gray 22 Way Connector Pinouts

G04528320

Courtesy of DAIMLERCHRYSLER CORP.
