Powertrain Control Module C4 - Black/Green 38 Way

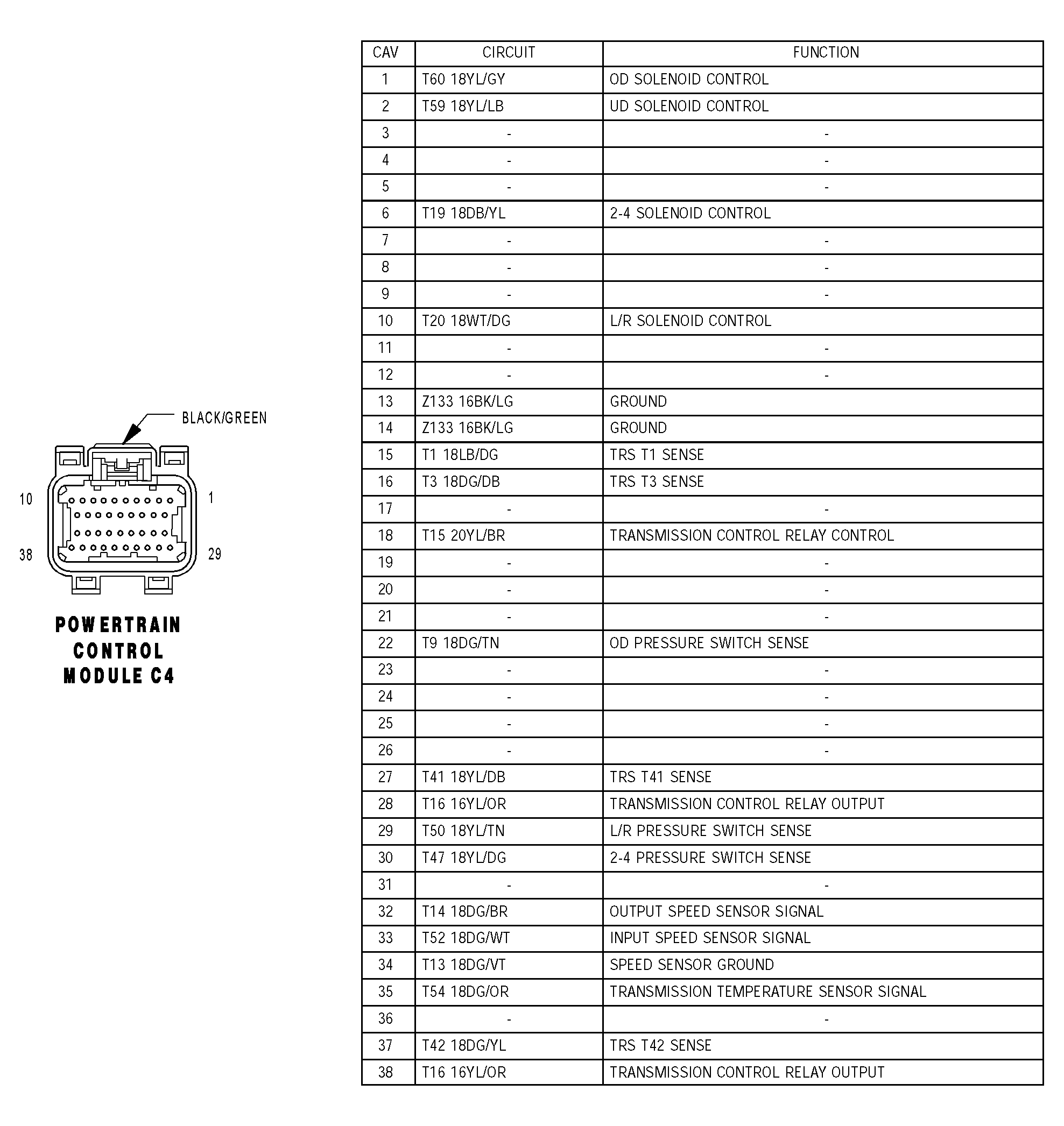

Fig 1: Identifying Powertrain Control Module C4 - Black/Green 38 Way Connector Pinouts

G04528319

Courtesy of DAIMLERCHRYSLER CORP.
