Powertrain Control Module C1 - Black/Black 38 Way

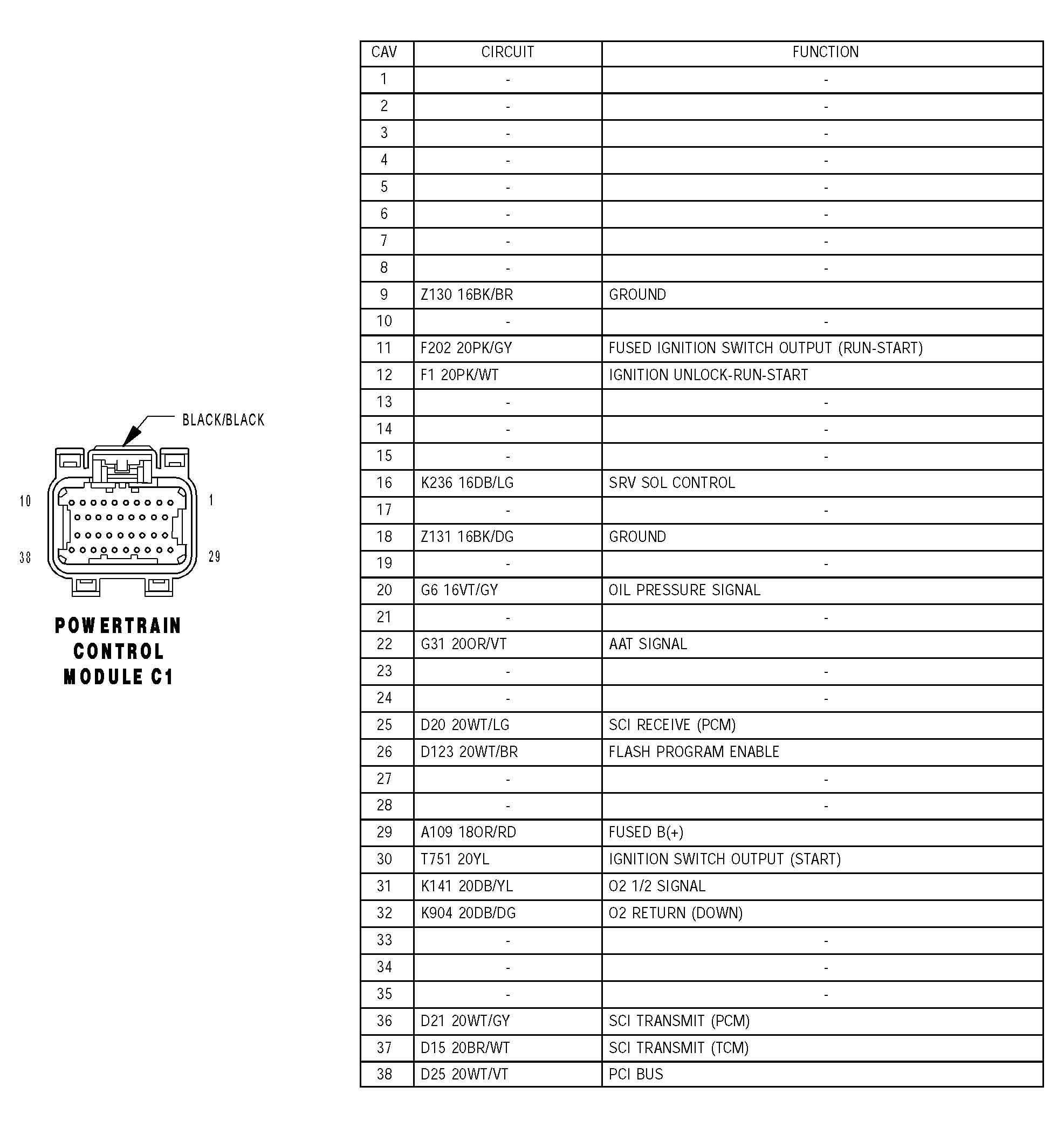

Fig 1: Identifying Powertrain Control Module C1 - Black/Black 38 Way Connector Pinouts
G04528318Courtesy of DAIMLERCHRYSLER CORP.
