Power Window Switch-Driver Rear - Black 4 Way

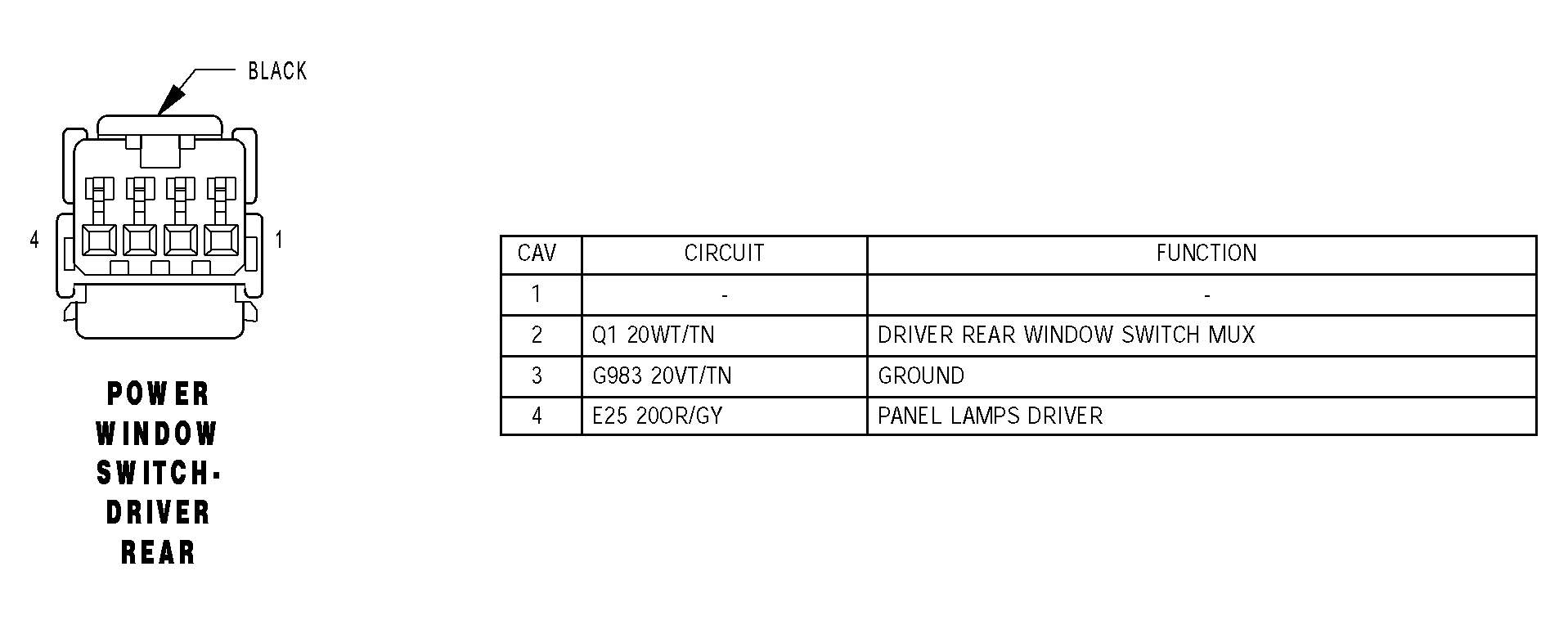

Fig 1: Identifying Power Window Switch-Driver Rear - Black 4 Way Connector Pinouts

G04528316

Courtesy of DAIMLERCHRYSLER CORP.
