Power Liftgate Module C2 - Black 20 Way

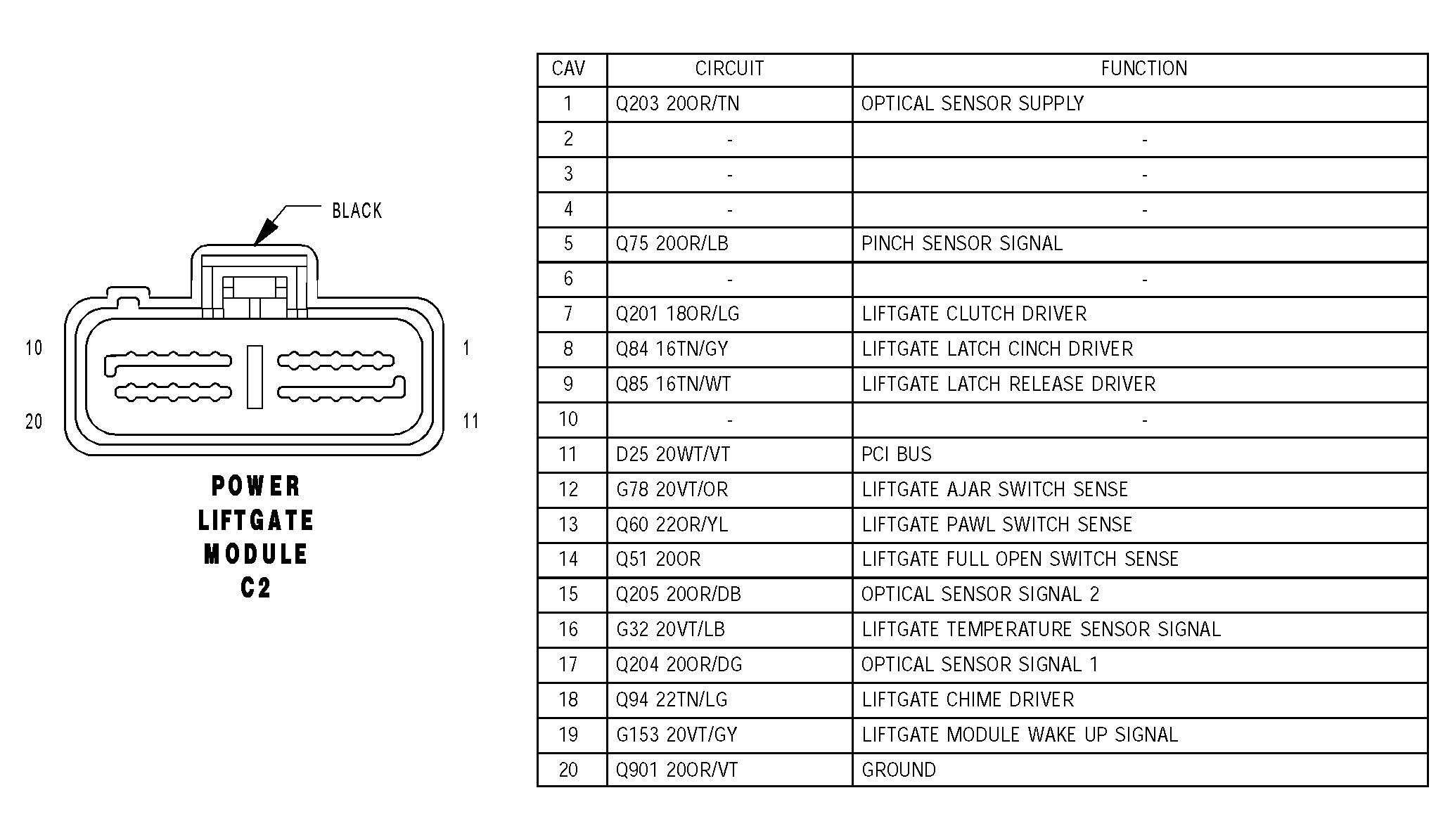

Fig 1: Identifying Power Liftgate Module C2 - Black 20 Way Connector Pinouts

G04528302

Courtesy of DAIMLERCHRYSLER CORP.
