Power Liftgate Module C1 - Black 8 Way

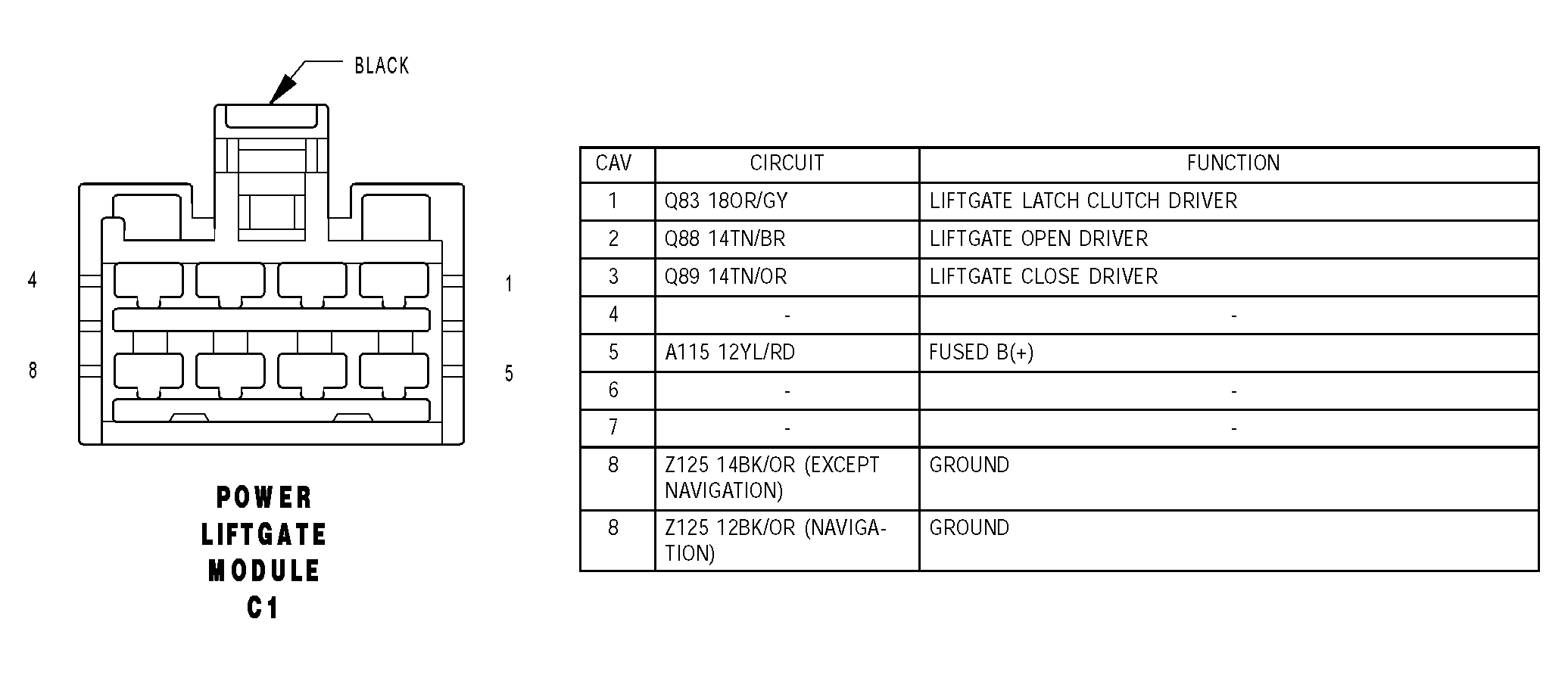

Fig 1: Identifying Power Liftgate Module C1 - Black 8 Way Connector Pinouts
G04528301Courtesy of DAIMLERCHRYSLER CORP.
