Power Liftgate Drive Unit - DK. Gray 10 Way

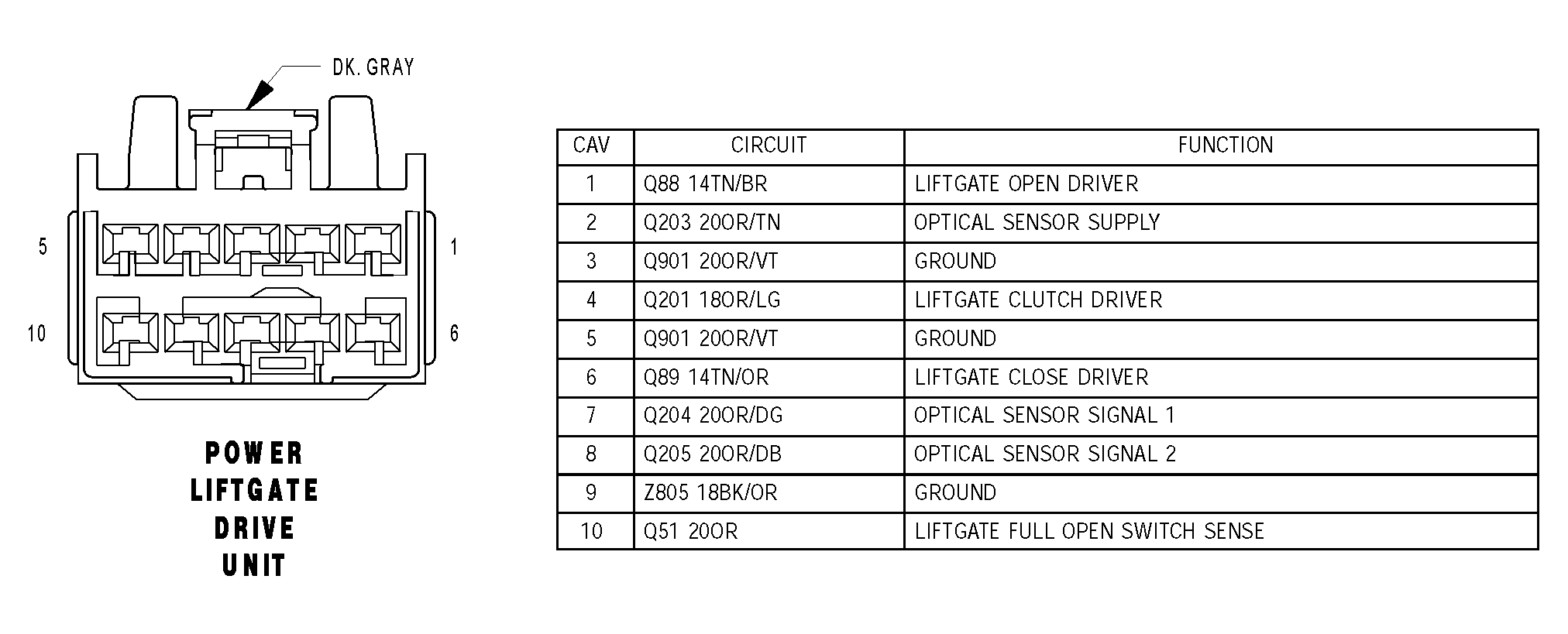

Fig 1: Identifying Power Liftgate Drive Unit - Dk. Gray 10 Way Connector Pinouts

G04528300

Courtesy of DAIMLERCHRYSLER CORP.
