Park Assist Display Module (PARKTRONICS) - Black 3 Way

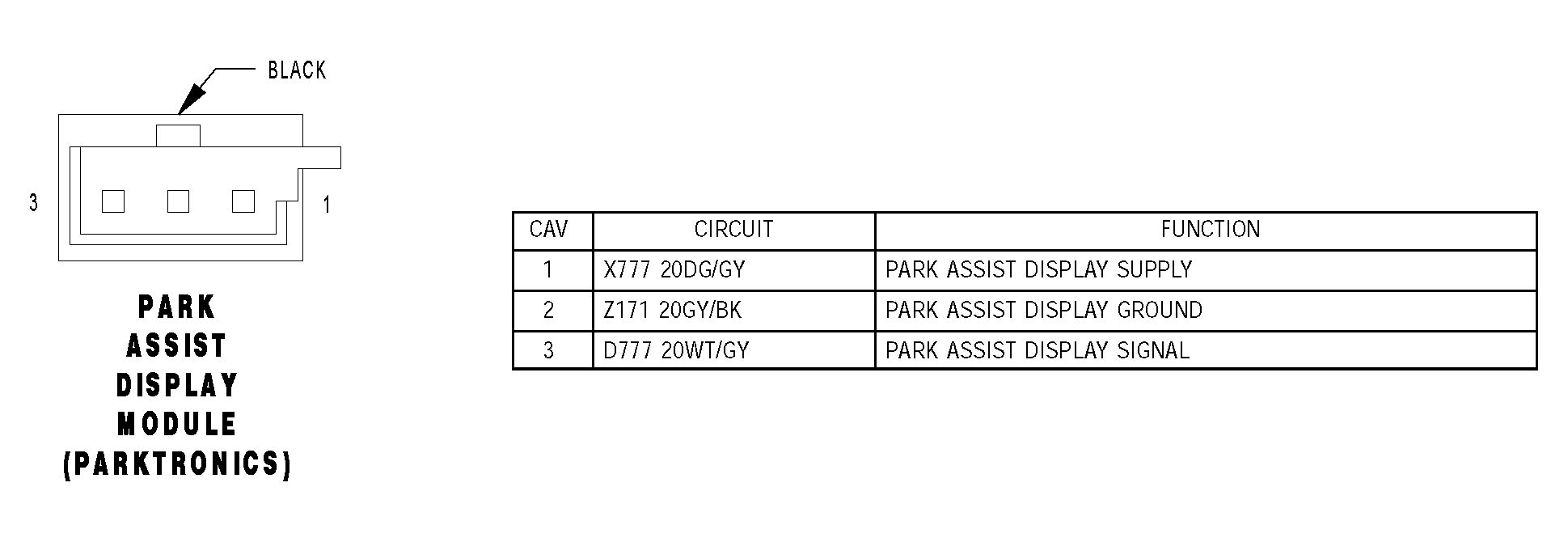

Fig 1: Identifying Park Assist Display Module (Parktronics) - Black 3 Way Connector Pinouts
G04528294Courtesy of DAIMLERCHRYSLER CORP.
