Occupant Restraint Controller C2 - Yellow 32 Way

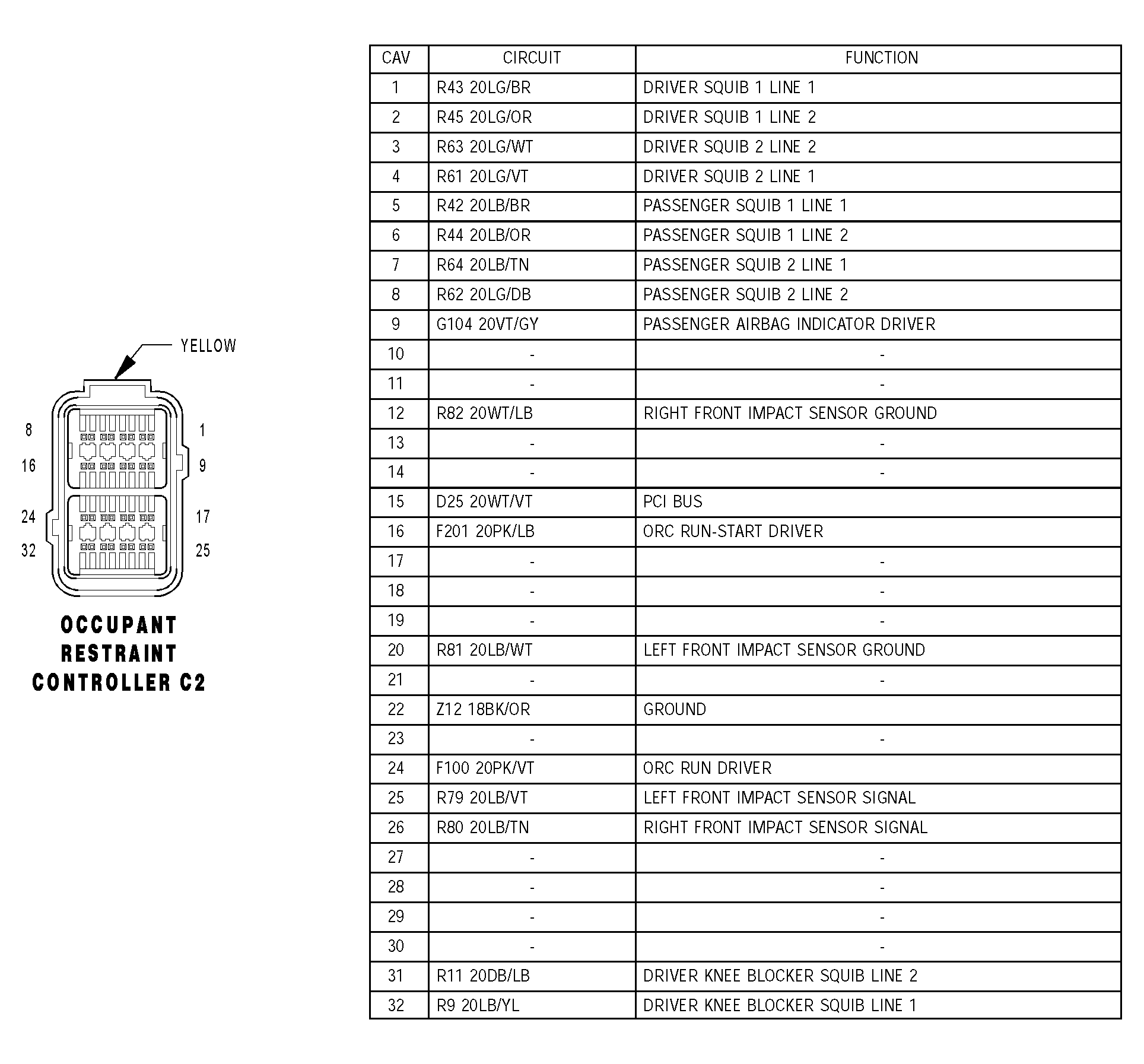

Fig 1: Identifying Occupant Restraint Controller C2 - Yellow 32 Way Connector Pinouts

G04528292

Courtesy of DAIMLERCHRYSLER CORP.
