Multi-Function Switch - Black 12 Way

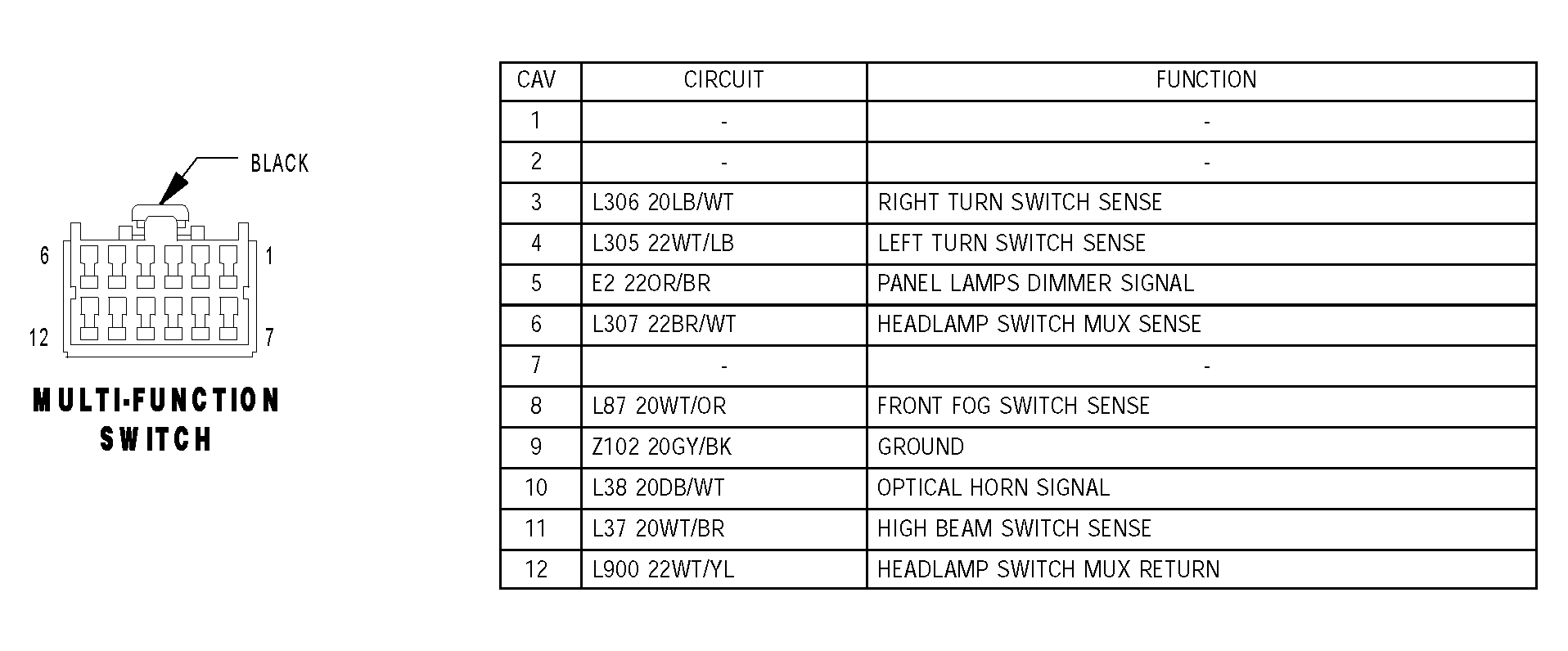

Fig 1: Identifying Multi-Function Switch - Black 12 Way Connector Pinouts

G04528289

Courtesy of DAIMLERCHRYSLER CORP.
