Memory/Heated Seat Adjustable Pedals Module C3 - White 12 Way

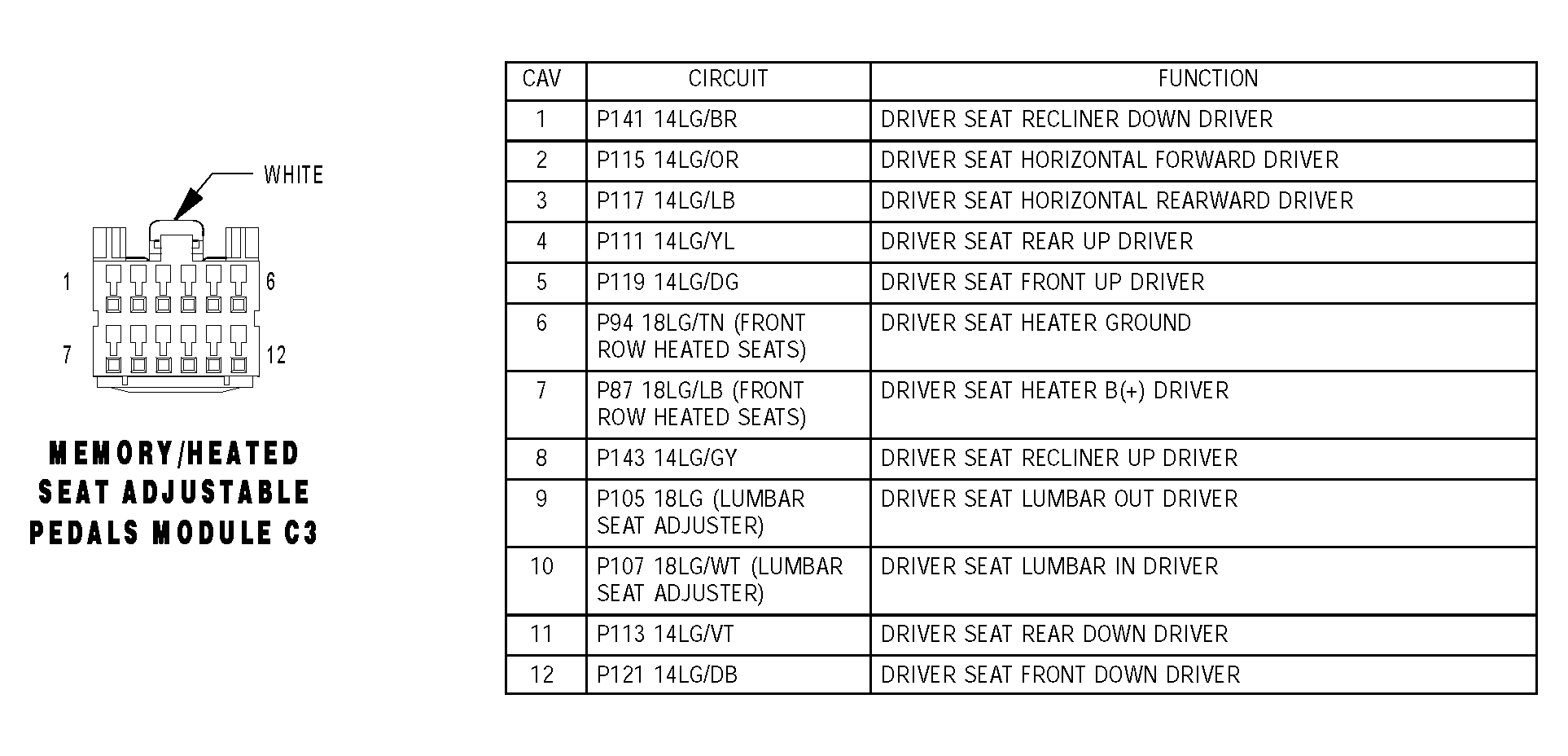

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C3 - White 12 Way Connector Pinouts

G04528285

Courtesy of DAIMLERCHRYSLER CORP.
