Memory/Heated Seat Adjustable Pedals Module C2 - Gray 16 Way

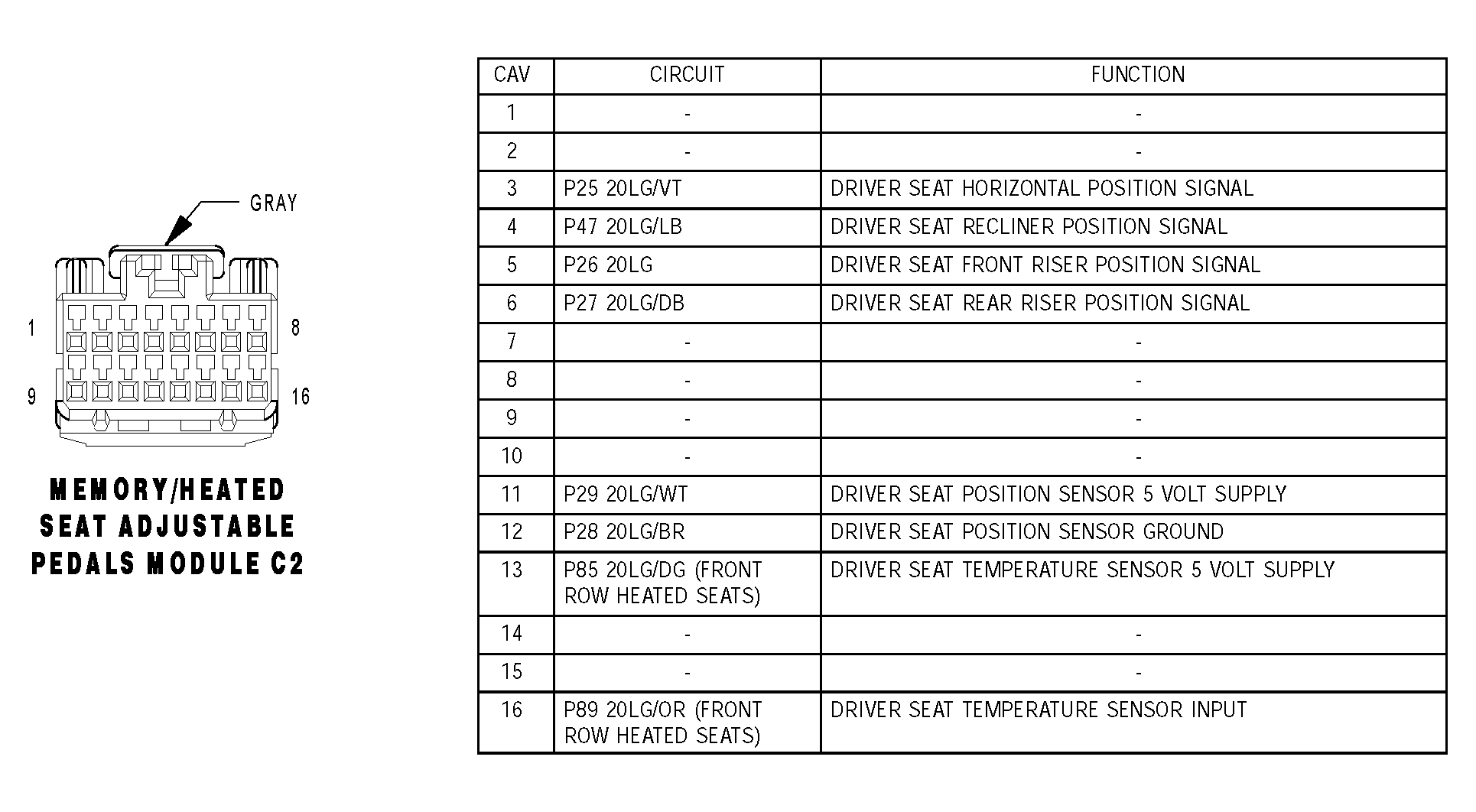

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C2 - Gray 16 Way Connector Pinouts

G04528284

Courtesy of DAIMLERCHRYSLER CORP.
