Memory/Heated Seat Adjustable Pedals Module C1 - DK. Gray 26 Way

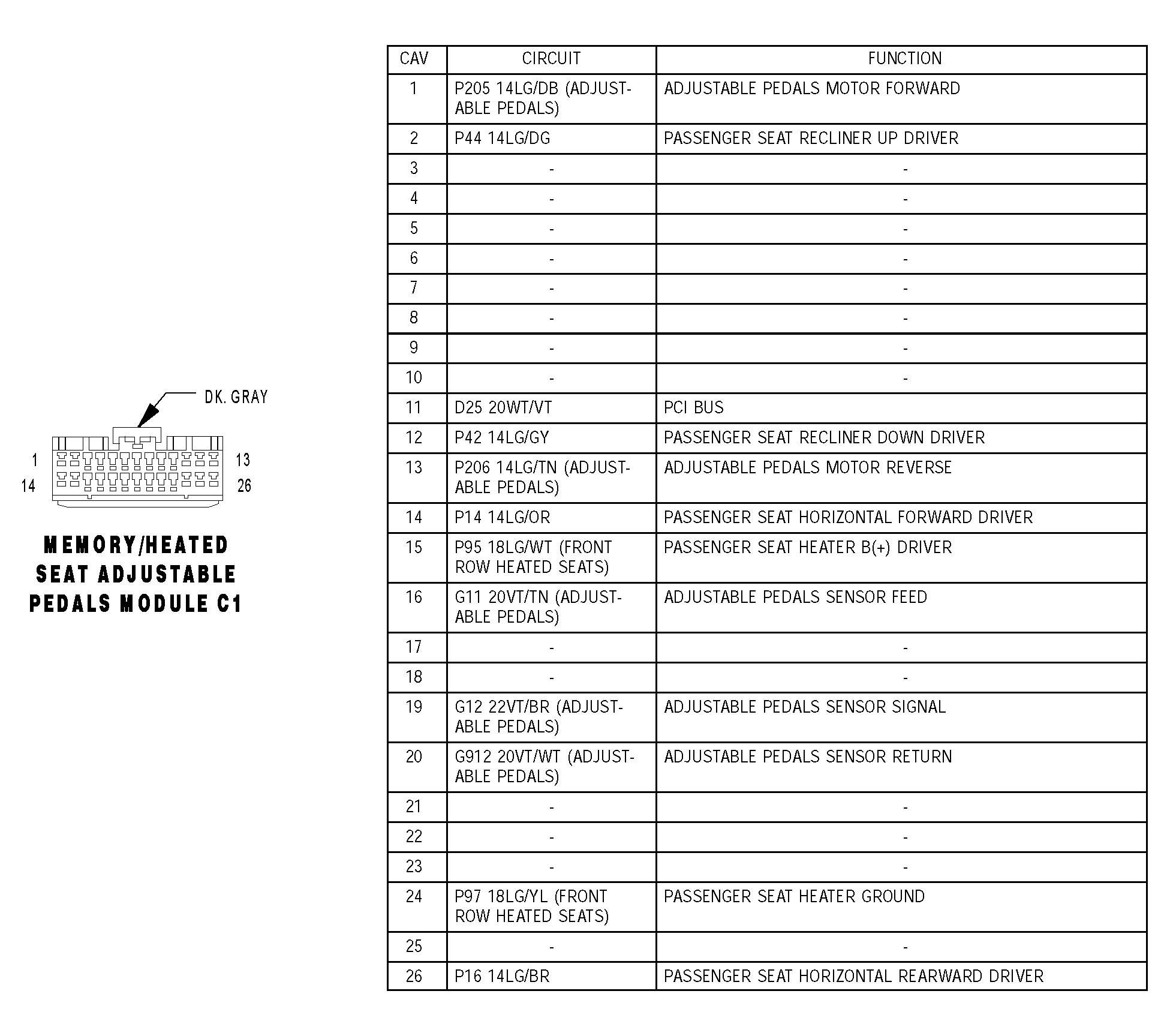

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C1 - Dk. Gray 26 Way Connector Pinouts

G04528283

Courtesy of DAIMLERCHRYSLER CORP.
