Liftgate Cinch/Release Motor (Power Liftgate) - Blue 7 Way

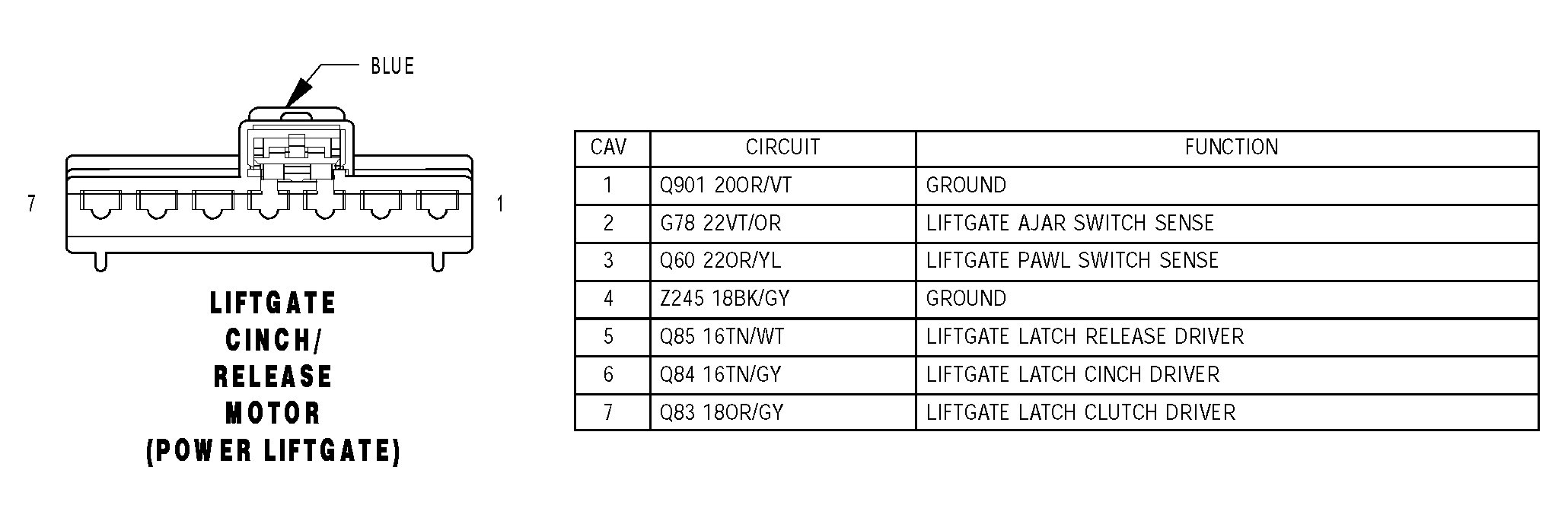

Fig 1: Identifying Liftgate Cinch/Release Motor (Power Liftgate) - Blue 7 Way Connector Pinouts

G04528279

Courtesy of DAIMLERCHRYSLER CORP.
