Integrated Power Module C9 - Blue 26 Way

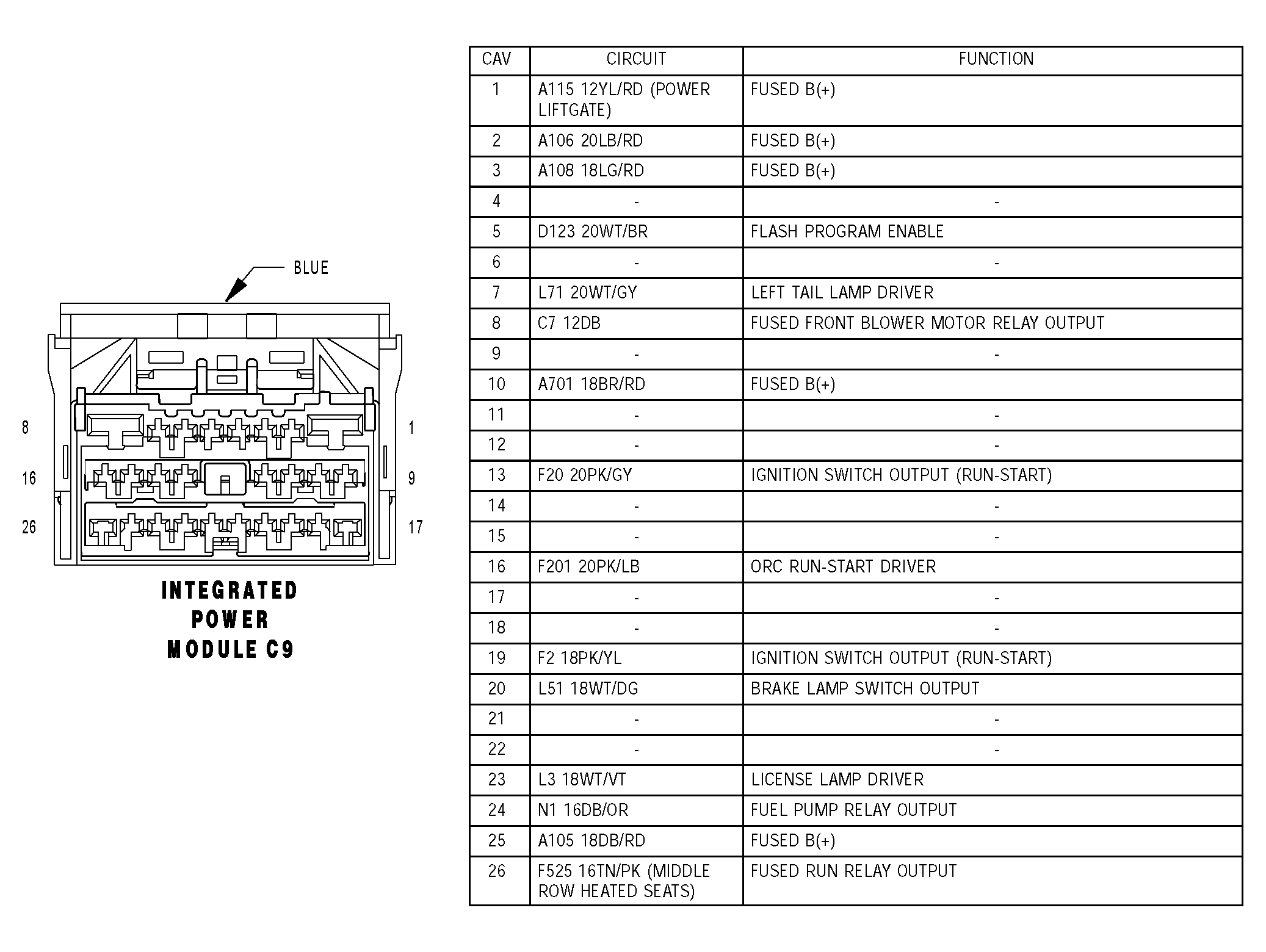

Fig 1: Identifying Integrated Power Module C9 - Blue 26 Way Connector Pinouts

G04528276

Courtesy of DAIMLERCHRYSLER CORP.
