Integrated Power Module C4 - Green 16 Way

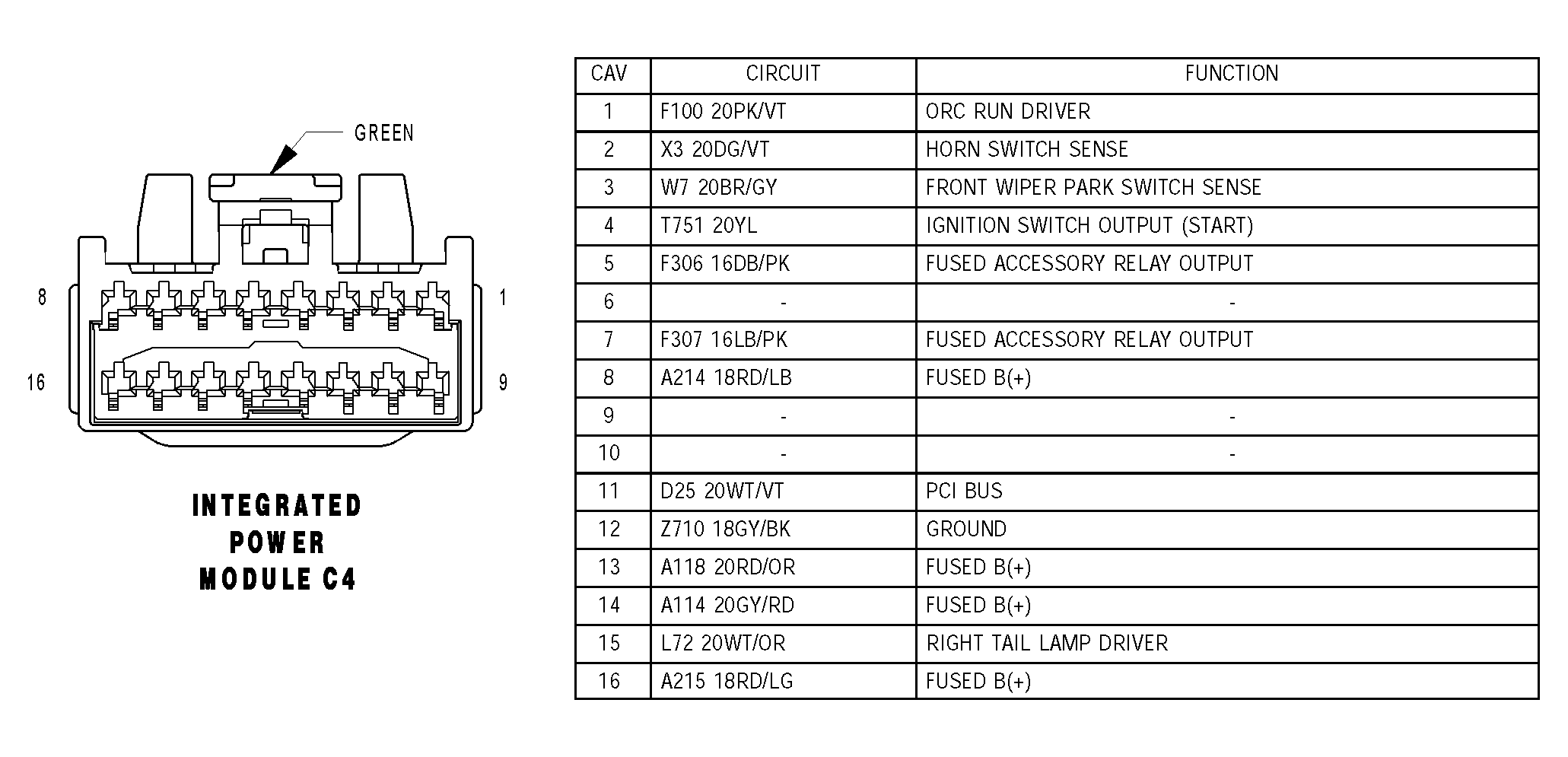

Fig 1: Identifying Integrated Power Module C4 - Green 16 Way Connector Pinouts

G04528271

Courtesy of DAIMLERCHRYSLER CORP.
