Integrated Power Module C2 - DK. Gray 4 Way

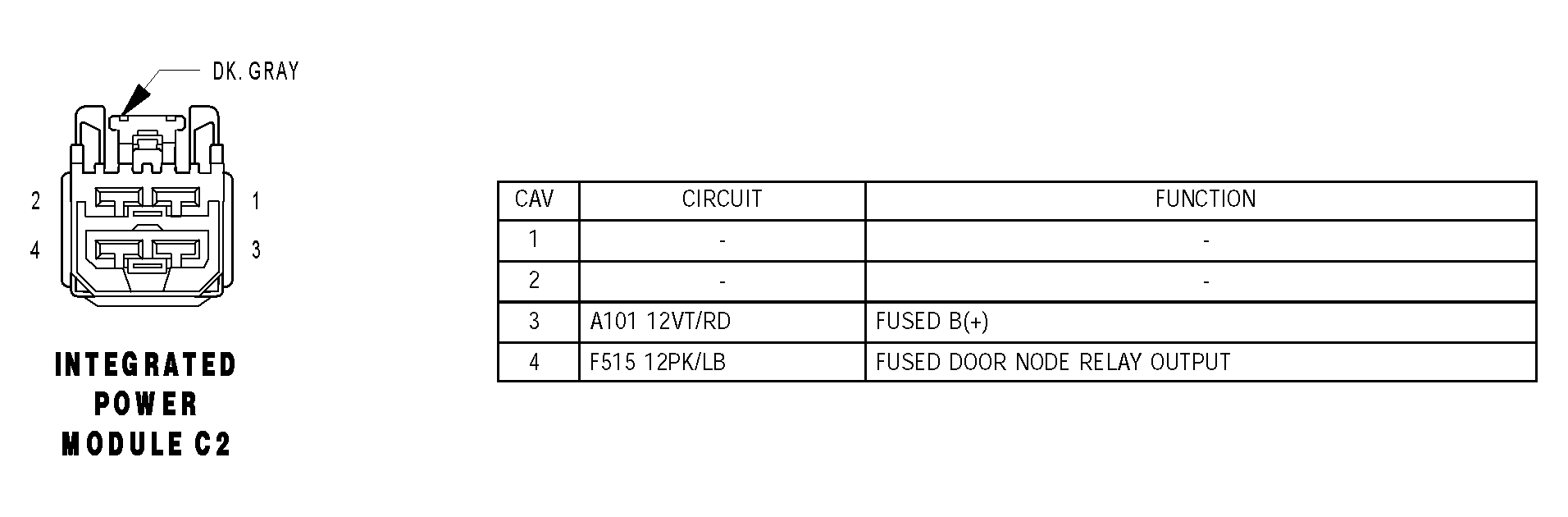

Fig 1: Identifying Integrated Power Module C2 - Dk. Gray 4 Way Connector Pinouts

G04528269

Courtesy of DAIMLERCHRYSLER CORP.
