Instrument Panel Switch Pod - Black 12 Way

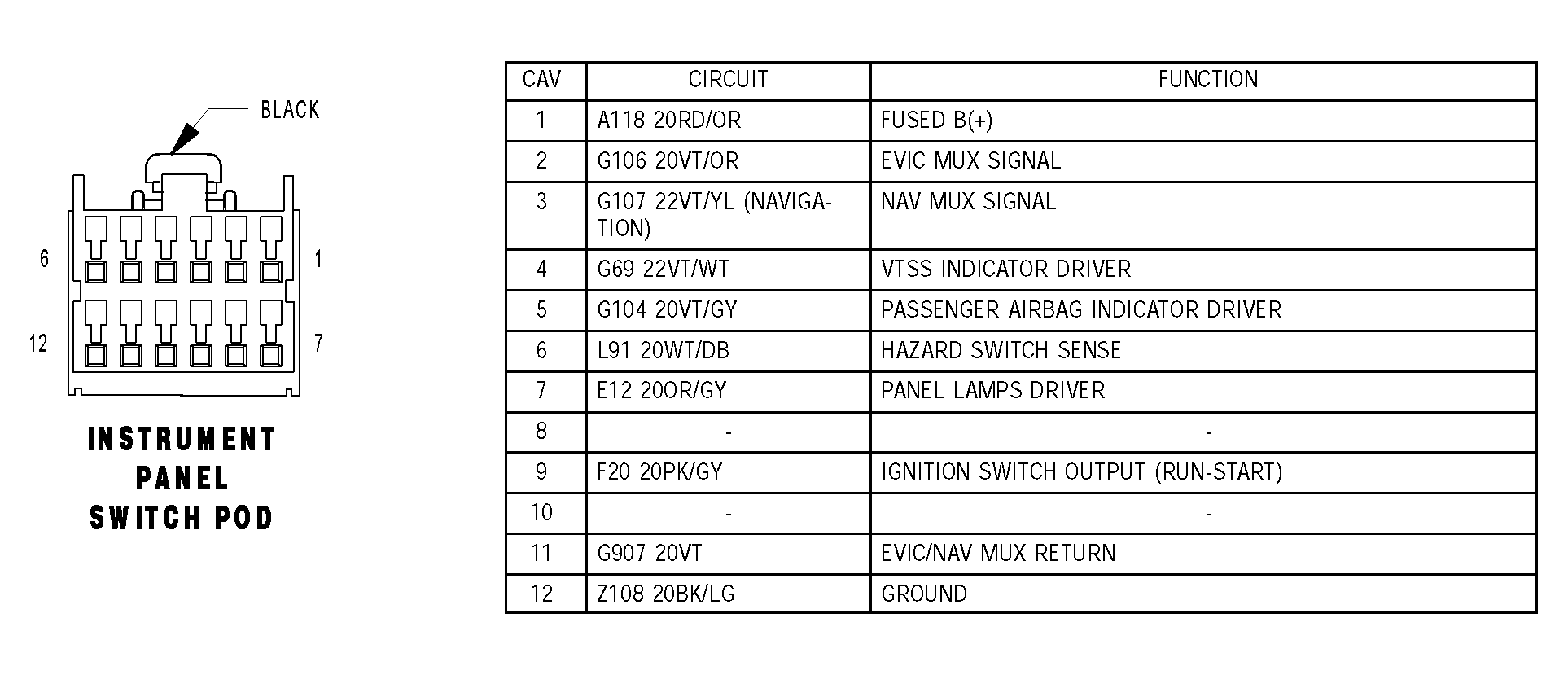

Fig 1: Identifying Connector Pinouts - Instrument Panel Switch Pod - Black 12 Way

Courtesy of DAIMLERCHRYSLER CORP.

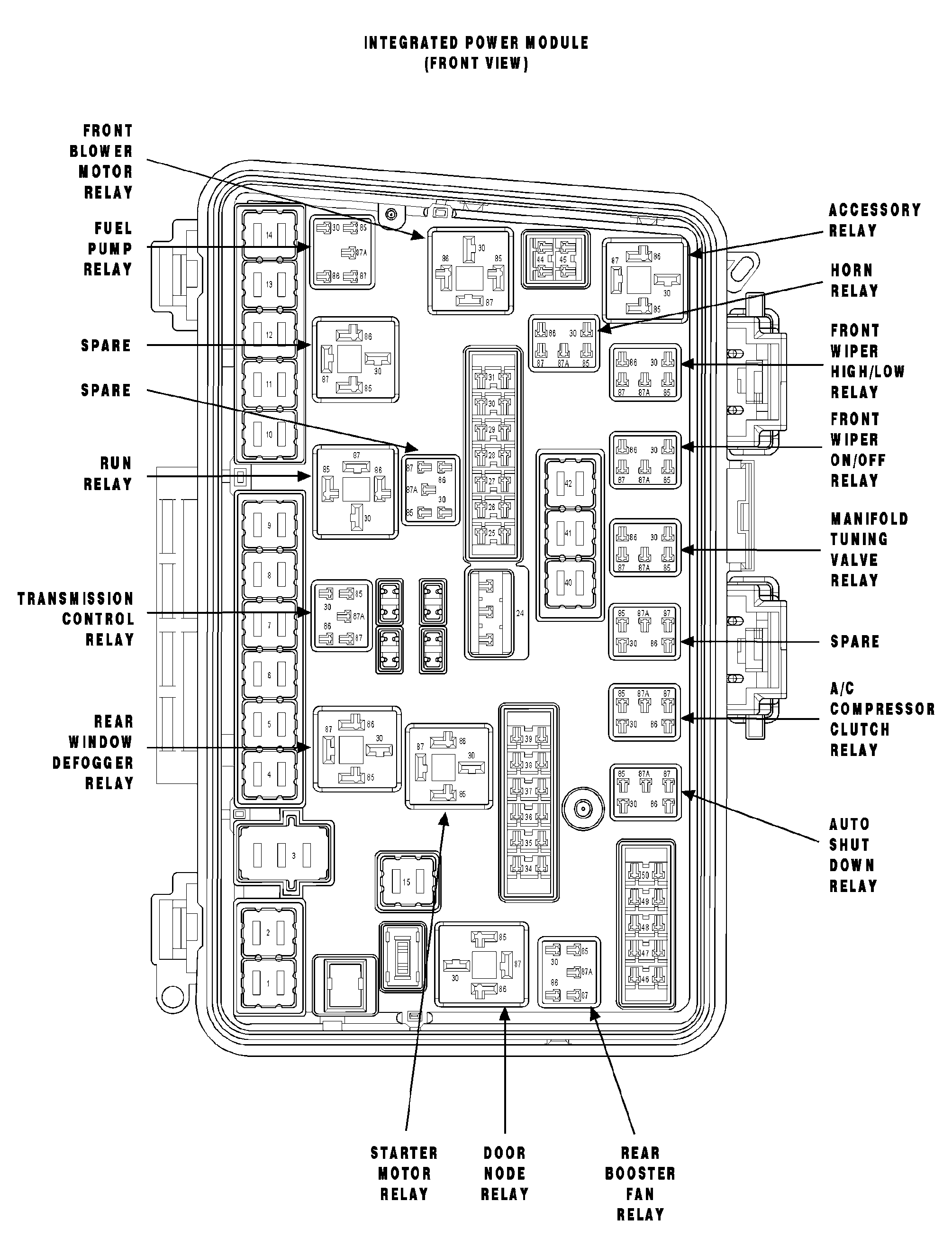

Fig 2: Identifying Integrated Power Module (Front View)

Courtesy of DAIMLERCHRYSLER CORP.
