Instrument Cluster C2 (Navigation) - Black 12 Way

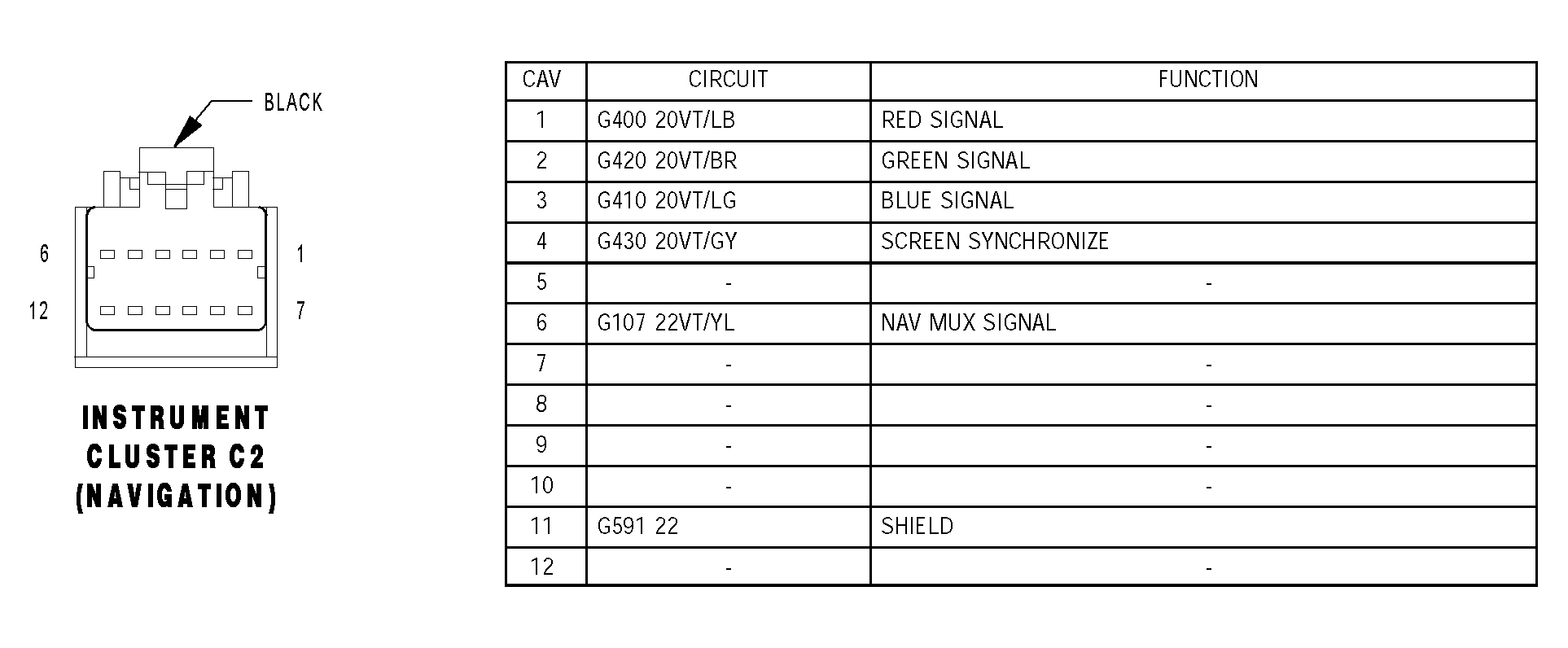

Fig 1: Identifying Connector Pinouts - Instrument Cluster C2 (Navigation) - Black 12 Way

G04528265

Courtesy of DAIMLERCHRYSLER CORP.
