Door Module-Driver C2 - Black 12 Way

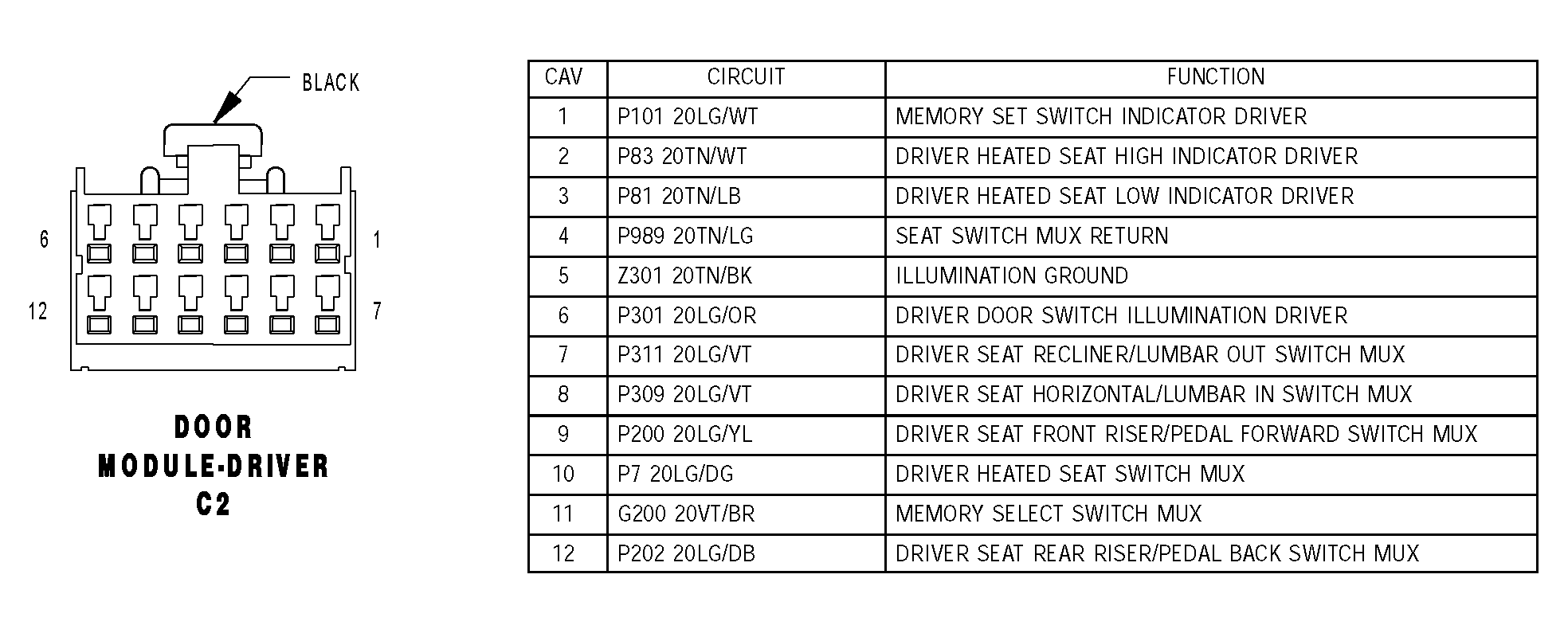

Fig 1: Identifying Connector Pinouts - Door Module-Driver C2 - Black 12 Way

G04528234

Courtesy of DAIMLERCHRYSLER CORP.
