Door Lock Motor/Ajar Switch-Driver - Black 4 Way

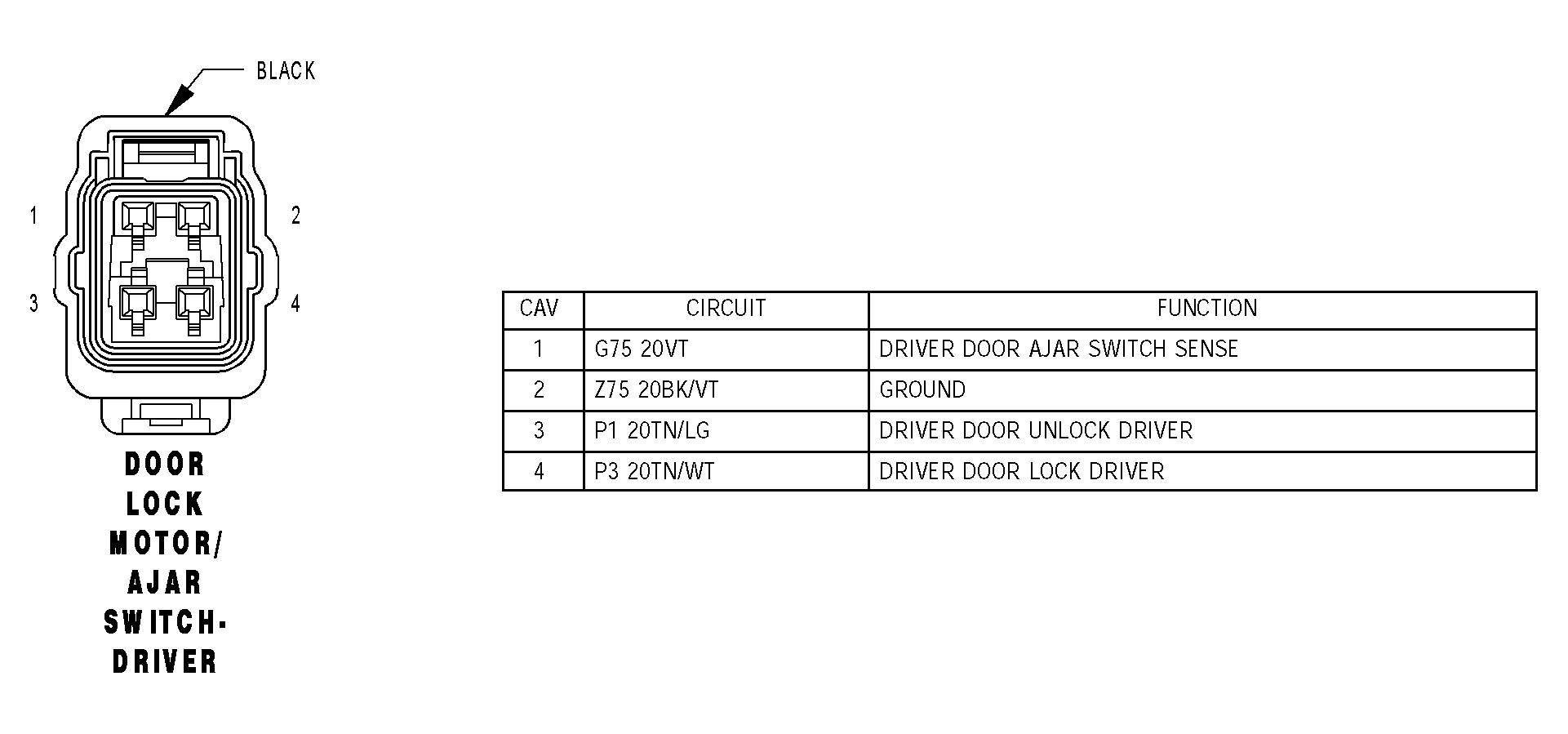

Fig 1: Identifying Connector Pinouts - Door Lock Motor/Ajar Switch-Driver - Black 4 Way

G04528229

Courtesy of DAIMLERCHRYSLER CORP.
