C308 (Power Liftgate) - Black (Liftgate Side)

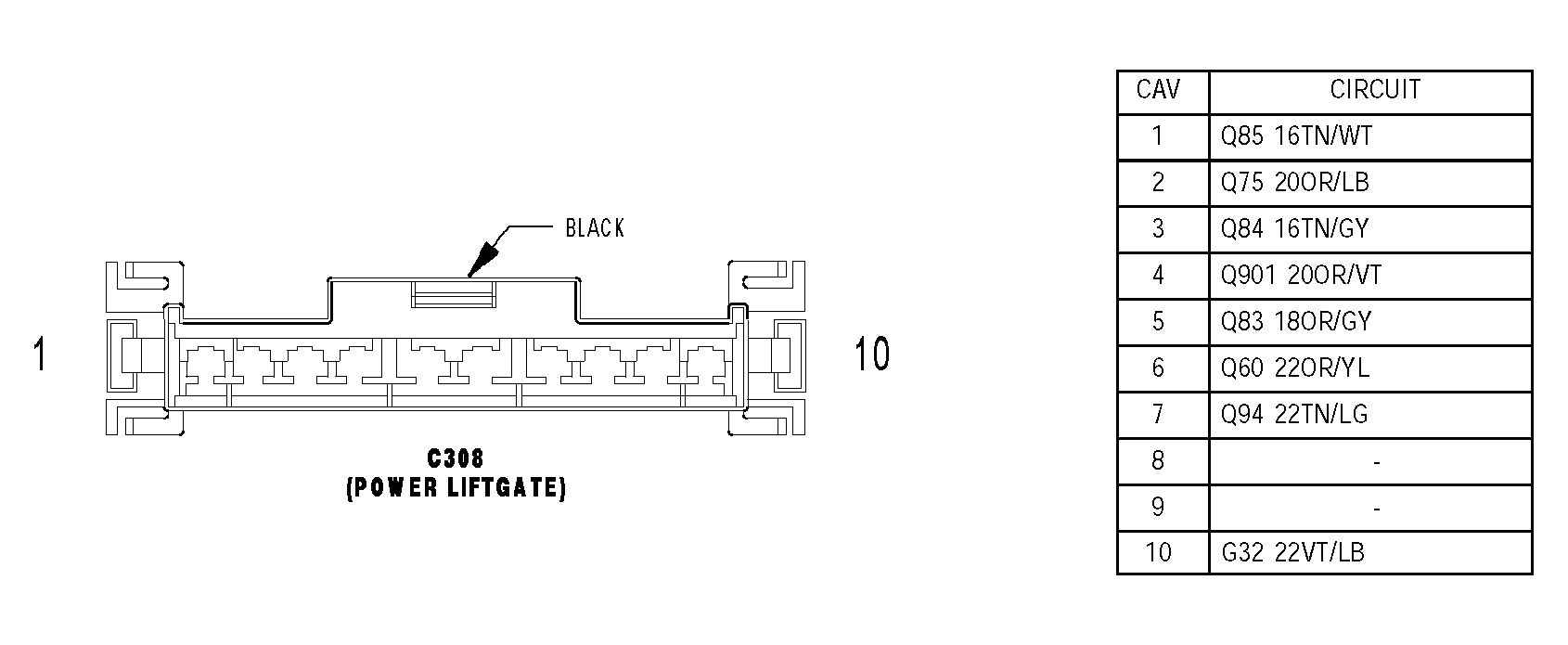

Fig 1: Identifying Connector Pinouts - C308 (Power Liftgate) - Black (Liftgate Side)

G04528222

Courtesy of DAIMLERCHRYSLER CORP.
