C308 (Power Liftgate) - Black (Body Side)

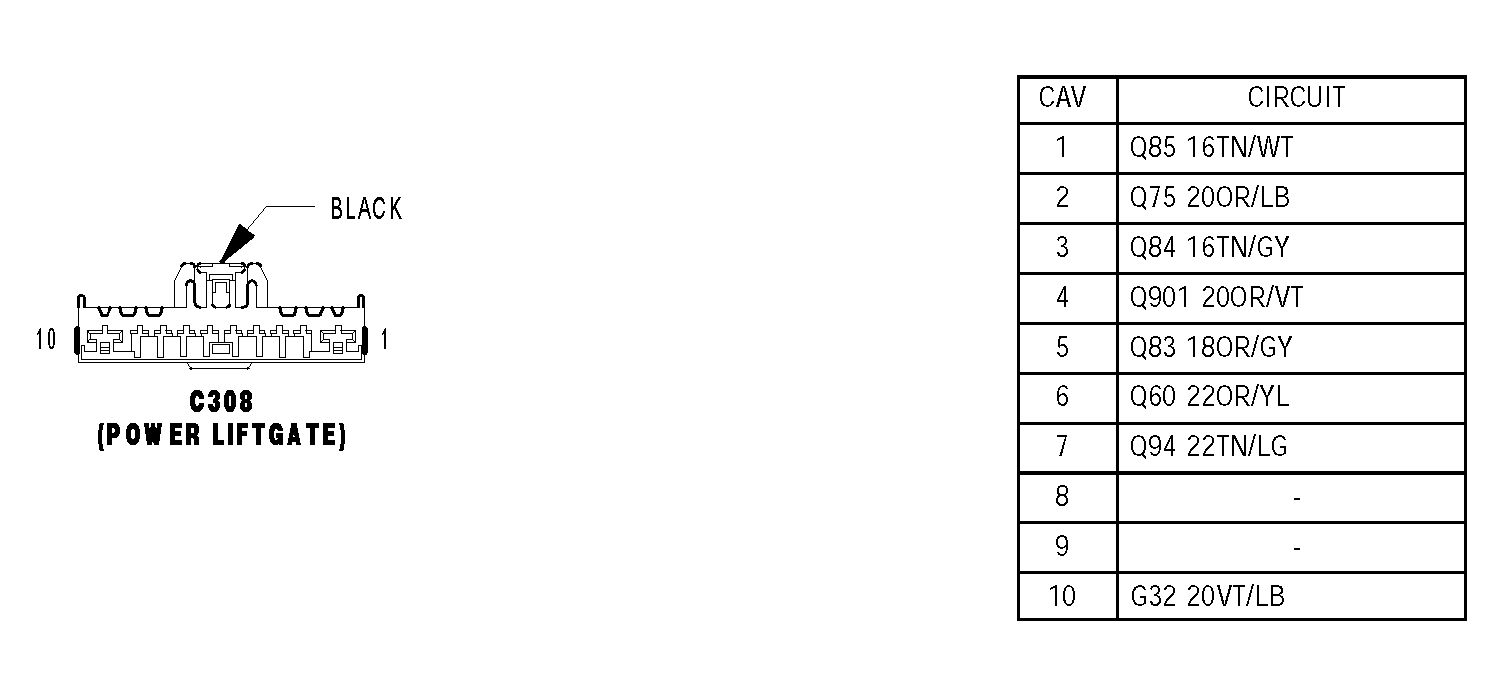

Fig 1: Identifying Connector Pinouts - C308 (Power Liftgate) - Black (Body Side)

G04528221

Courtesy of DAIMLERCHRYSLER CORP.
