C306 - LT. Gray (Right Rear Door Side)

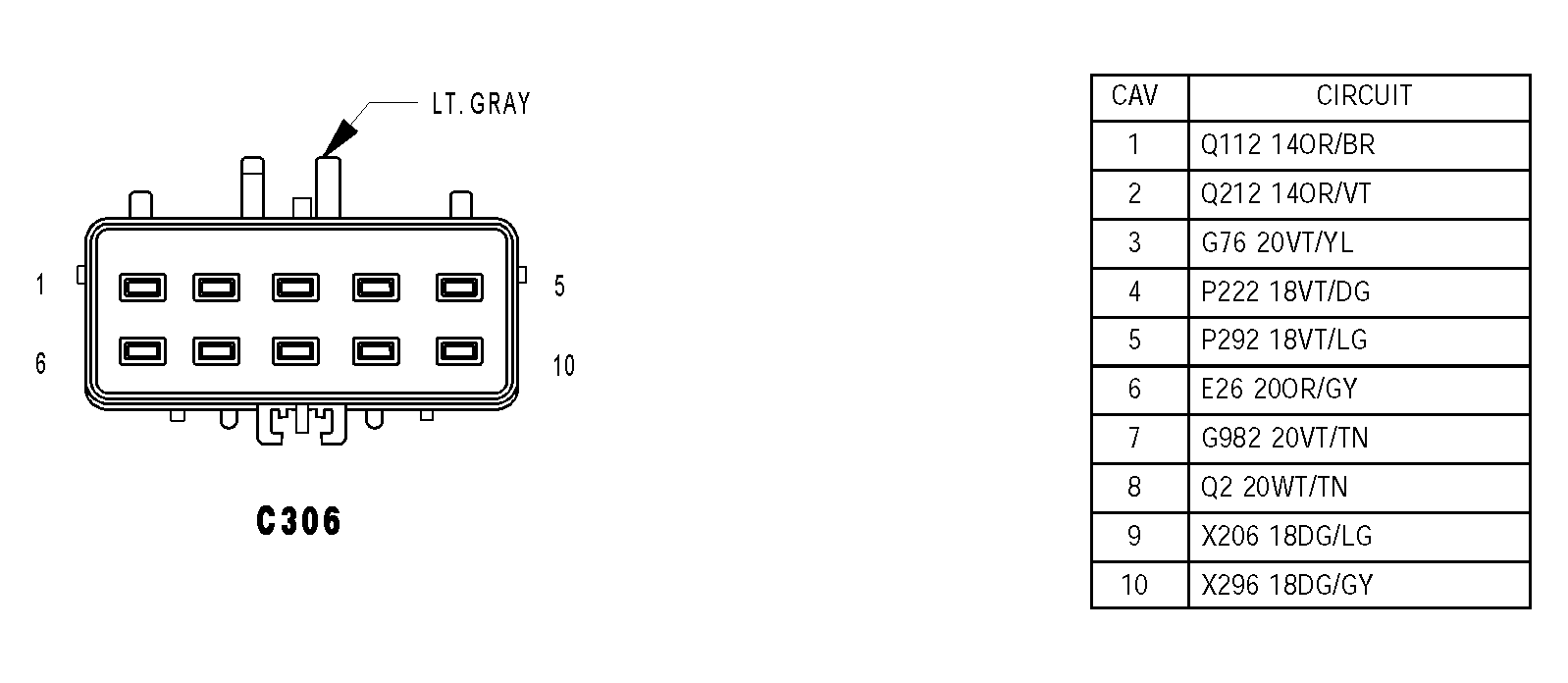

Fig 1: Identifying Connector Pinouts - C306 - LT. Gray (Right Rear Door Side)

G04528218

Courtesy of DAIMLERCHRYSLER CORP.
