C202 - DK. Gray (Instrument Panel Side)

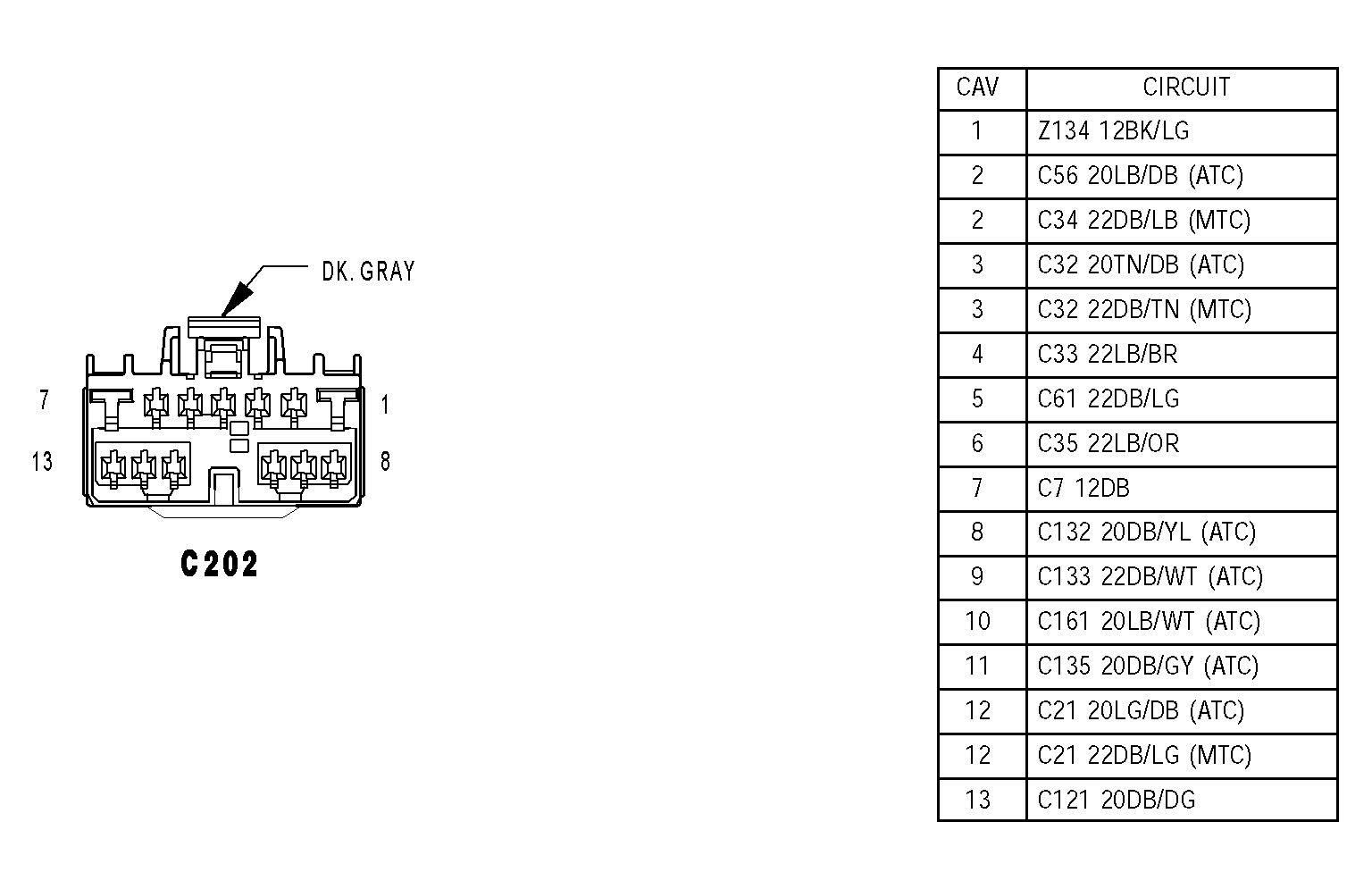

Fig 1: Identifying Connector Pinouts - C202 - DK. Gray (Instrument Panel Side)

G04528210

Courtesy of DAIMLERCHRYSLER CORP.
