C100 - Black (Front End Lighting Side)

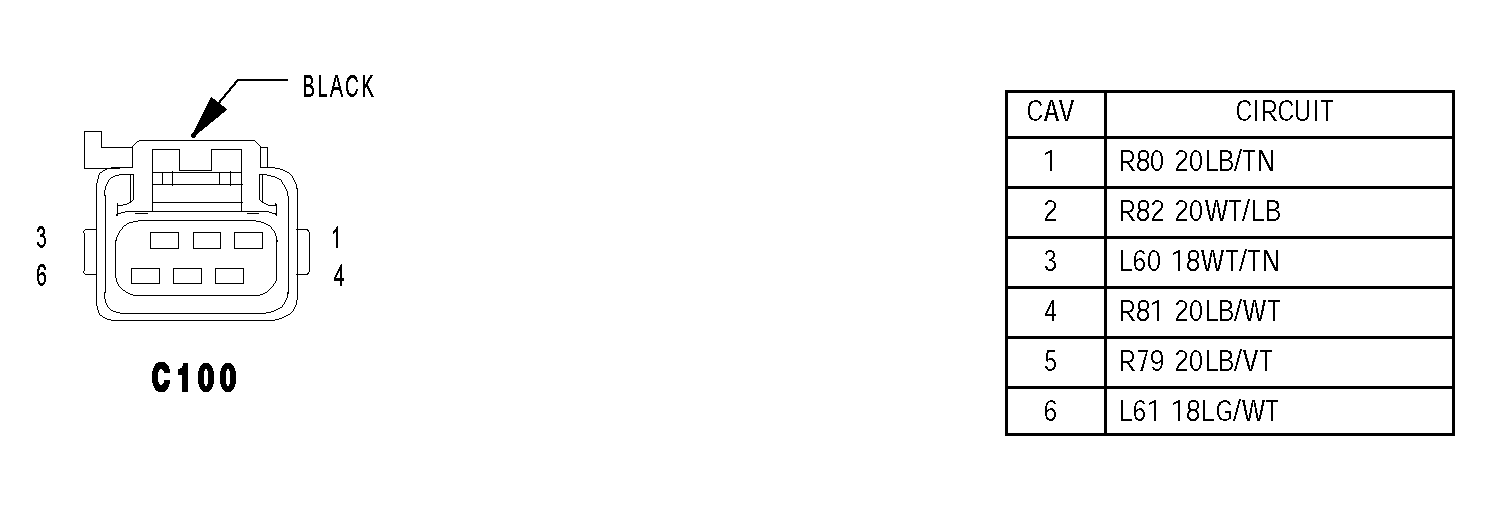

Fig 1: Identifying Connector Pinouts - C100 - Black (Front End Lighting Side)

G04528206

Courtesy of DAIMLERCHRYSLER CORP.
