Body Control Module C5 - Black/Black 34 Way

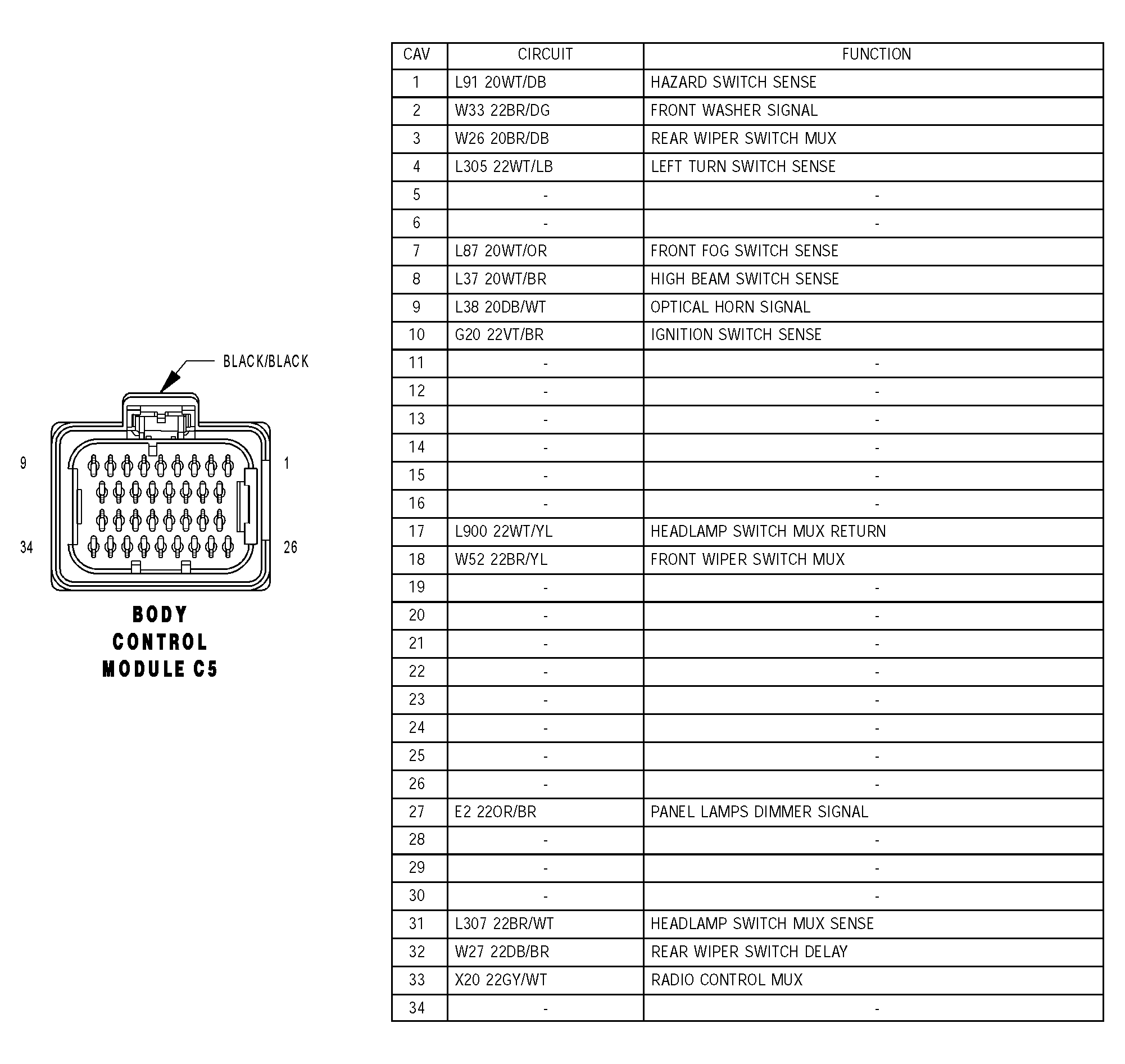

Fig 1: Identifying Connector Pinouts - Body Control Module C5 - Black/Black 34 Way

G04528203

Courtesy of DAIMLERCHRYSLER CORP.
