Body Control Module C3 - Black/Natural 34 Way

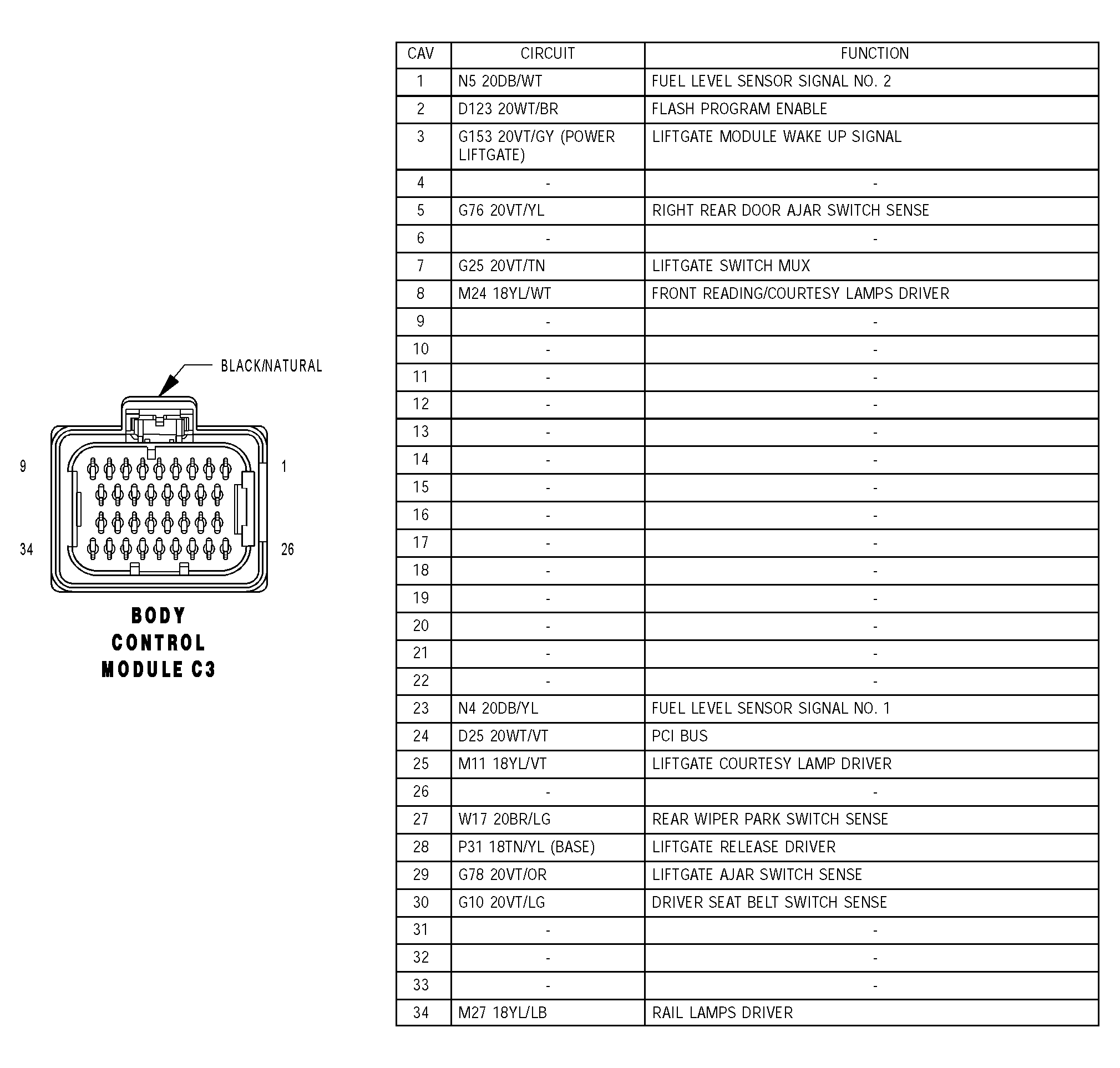

Fig 1: Identifying Connector Pinouts - Body Control Module C3 - Black/Natural 34 Way

G04528201

Courtesy of DAIMLERCHRYSLER CORP.
