Body Control Module C2 - Black/Green 34 Way

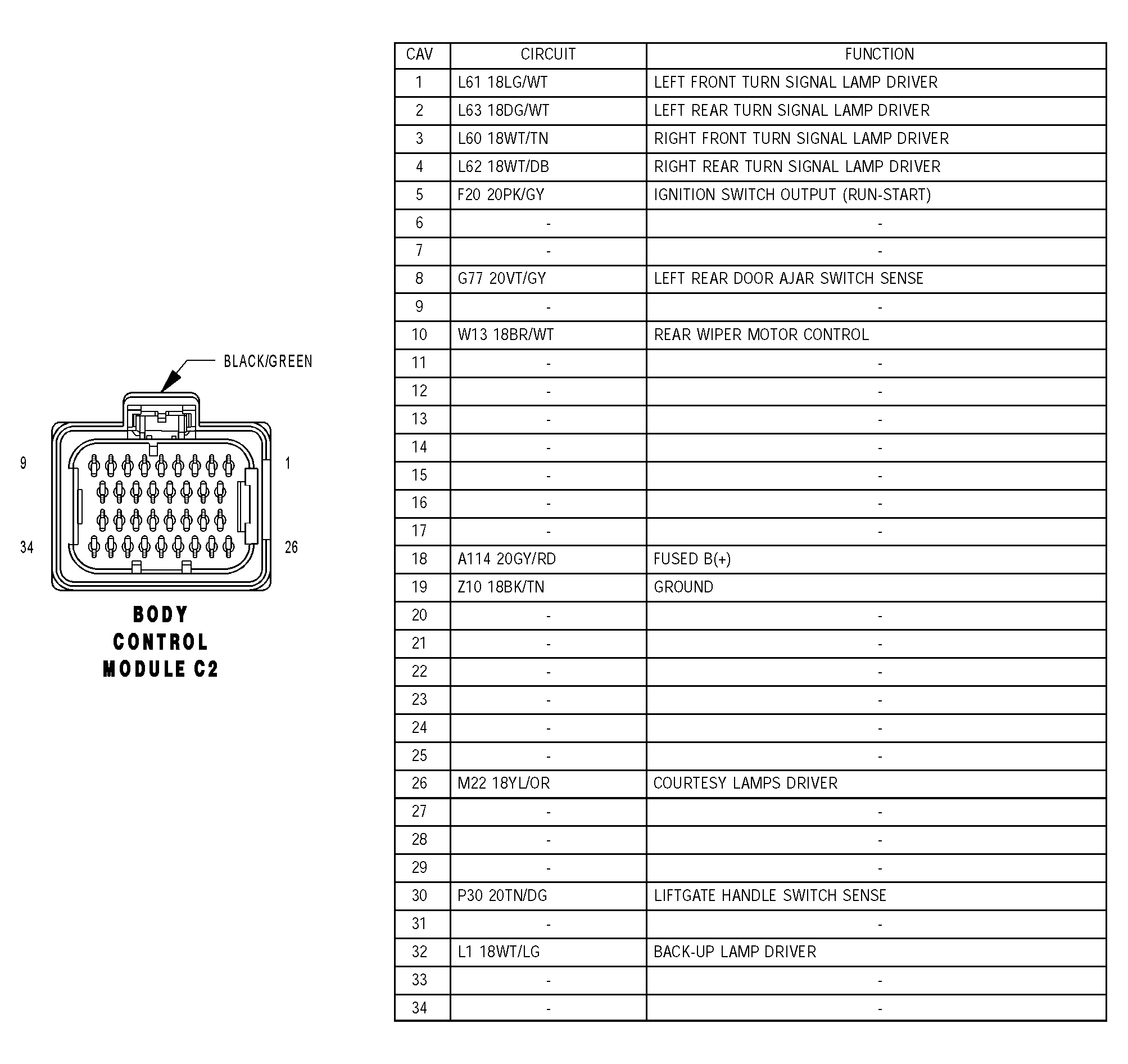

Fig 1: Identifying Connector Pinouts - Body Control Module C2 - Black/Green 34 Way

G04528200

Courtesy of DAIMLERCHRYSLER CORP.
