Blend Door Actuator-Driver - Gray 2 Way

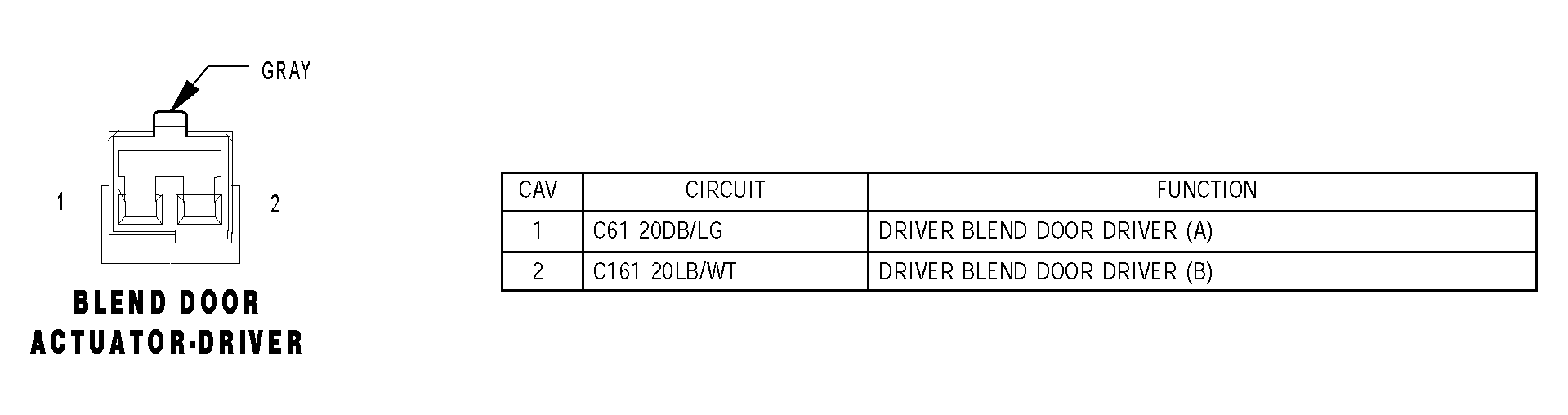

Fig 1: Identifying Connector Pinouts - Blend Door Actuator-Driver - Gray 2 Way

G04528195

Courtesy of DAIMLERCHRYSLER CORP.
