Auto Temp Control C2 - Natural 13 Way

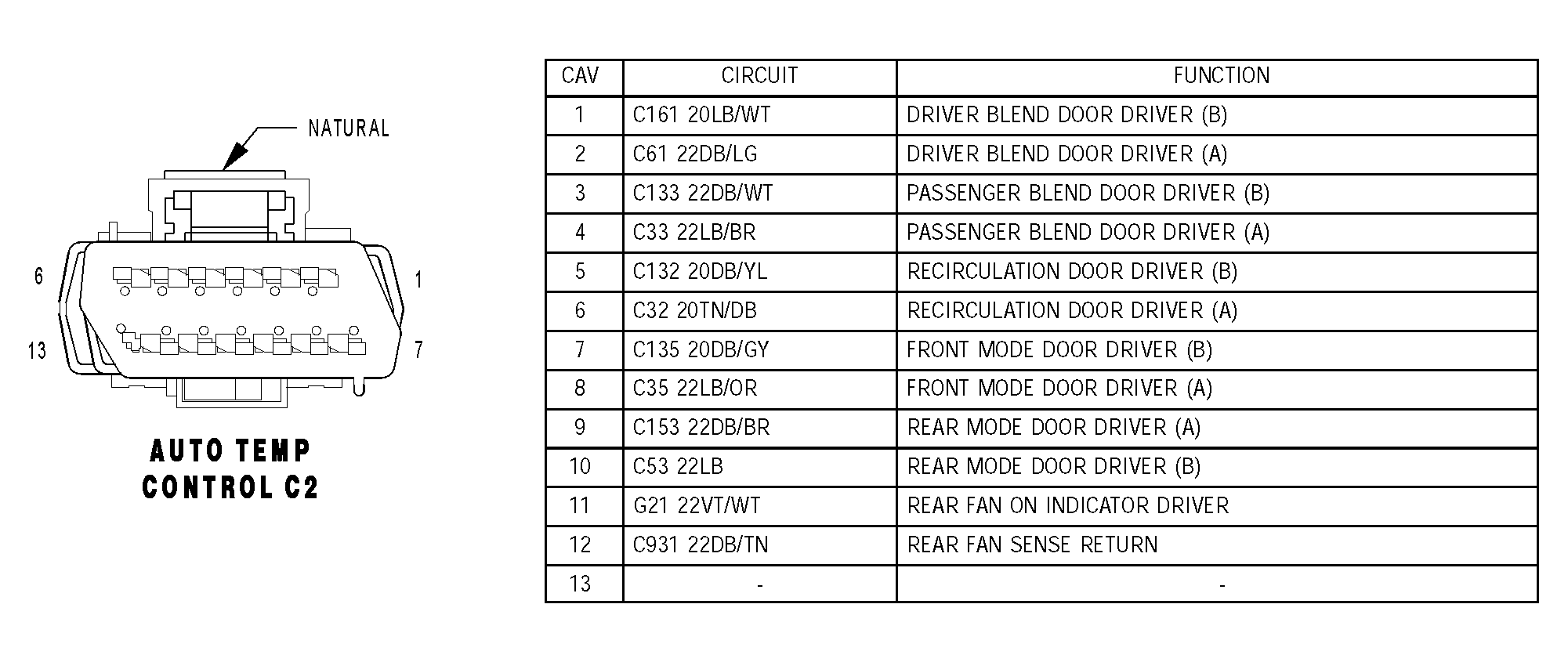

Fig 1: Identifying Connector Pinouts - Auto Temp Control C2 - Natural 13 Way

G04528192

Courtesy of DAIMLERCHRYSLER CORP.
