Airbag Squib-Left Curtain - Yellow 2 Way

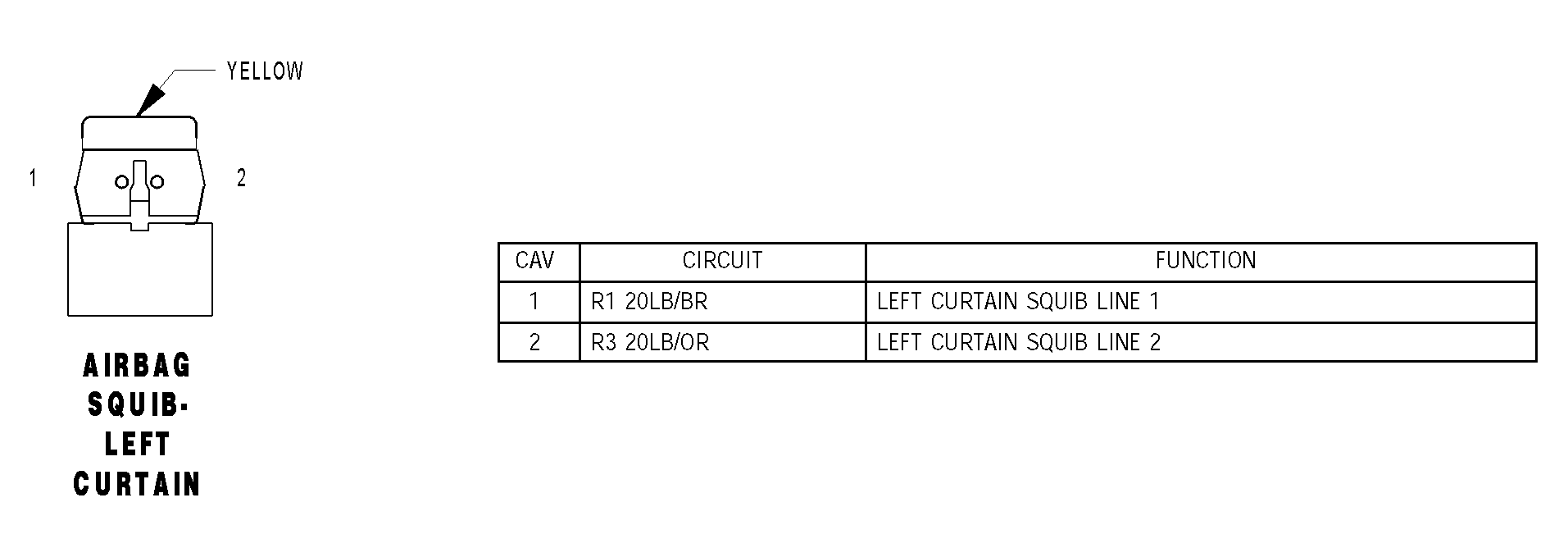

Fig 1: Identifying Connector Pinouts - Airbag Squib-Left Curtain - Yellow 2 Way

G04528185

Courtesy of DAIMLERCHRYSLER CORP.
