Airbag Squib-Driver Knee Blocker - Yellow 4 Way

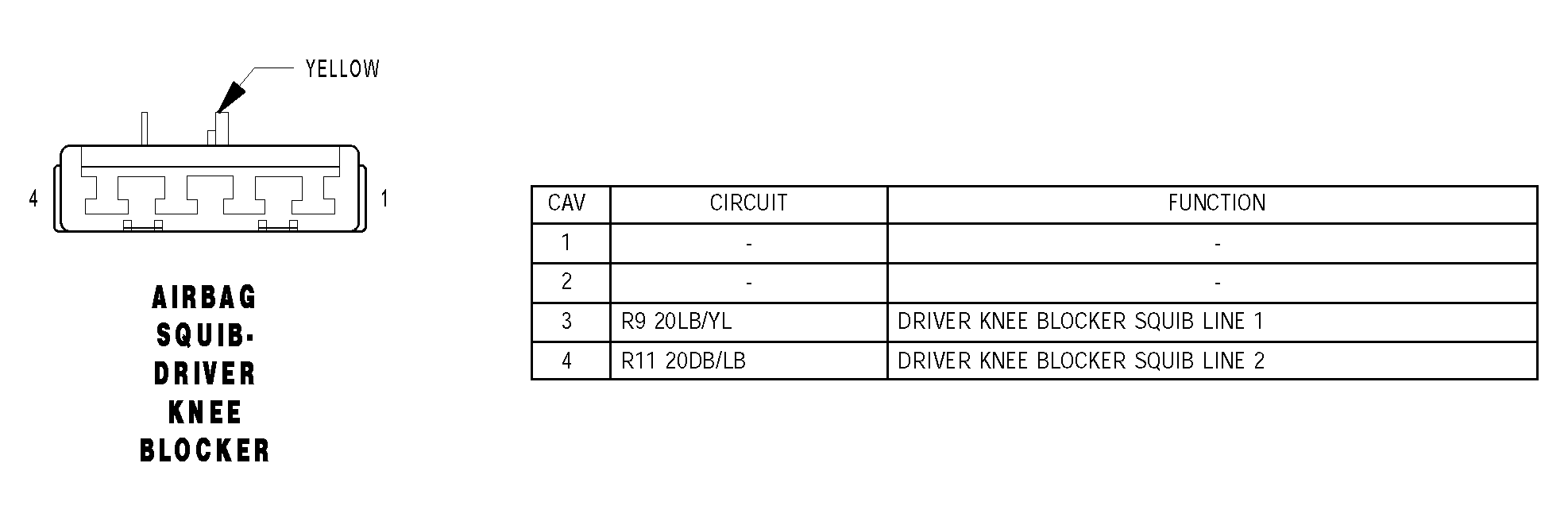

Fig 1: Identifying Connector Pinouts - Airbag Squib-Driver Knee Blocker - Yellow 4 Way

G04528184

Courtesy of DAIMLERCHRYSLER CORP.
