Adjustable Pedals Motor - White 6 Way

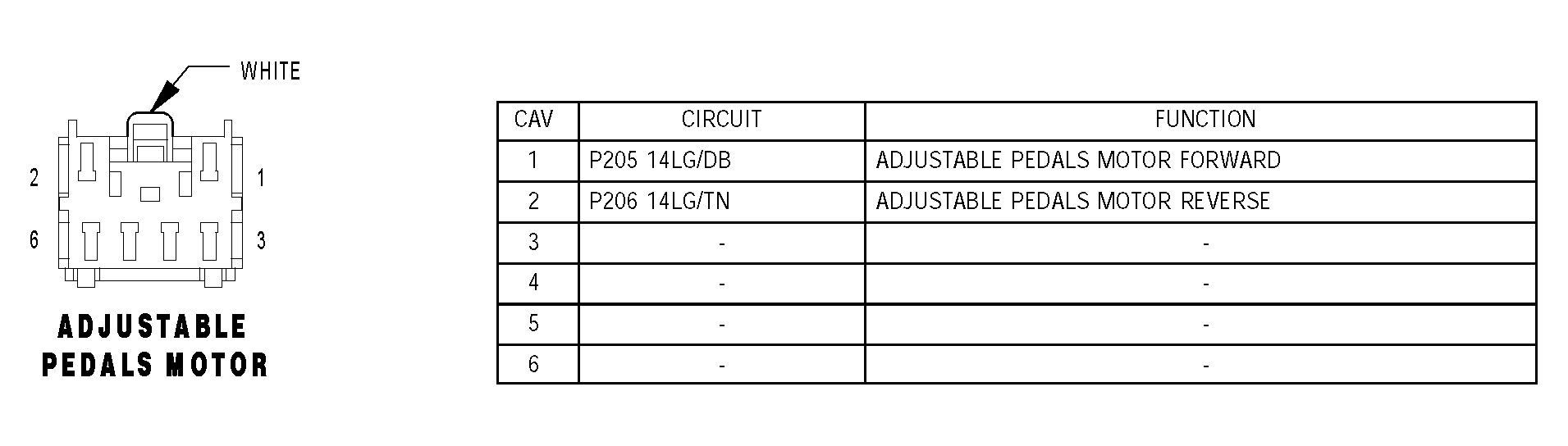

Fig 1: Identifying Connector Pinouts - Adjustable Pedals Motor - White 6 Way

G04528180

Courtesy of DAIMLERCHRYSLER CORP.
