A/C-Heater Control C2 (MTC) - 10 Way

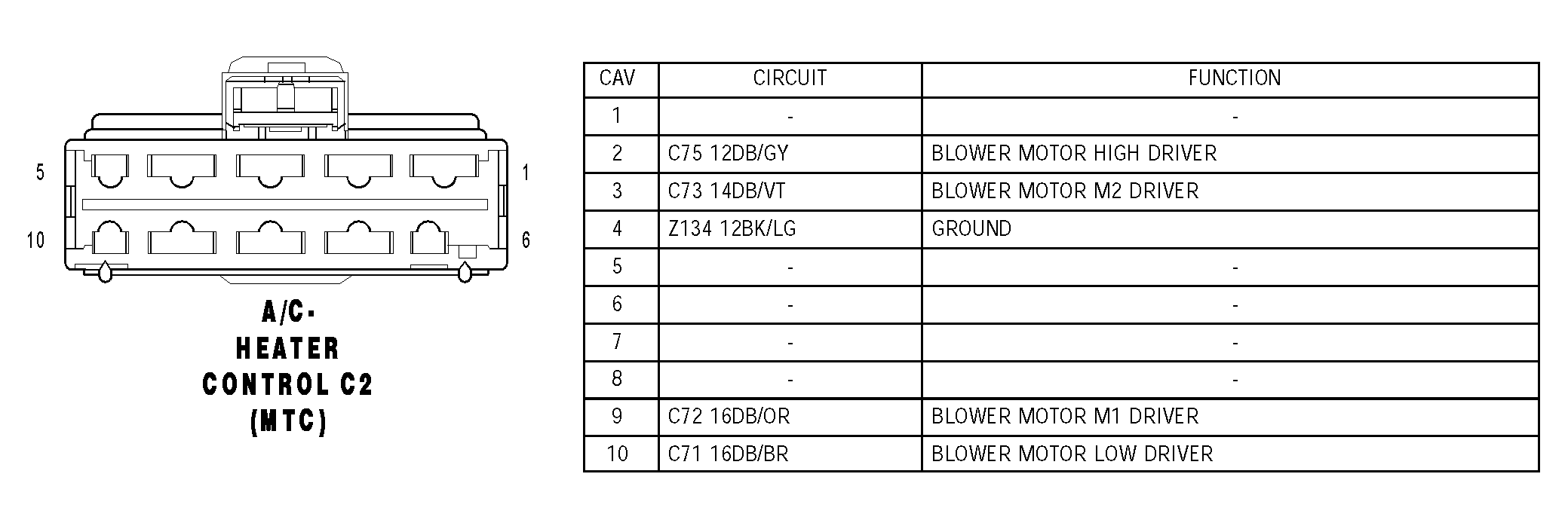

Fig 1: Identifying Connector Pinouts - A/C-Heater Control C2 (MTC) - 10 Way

G04528179

Courtesy of DAIMLERCHRYSLER CORP.
