Airbag System

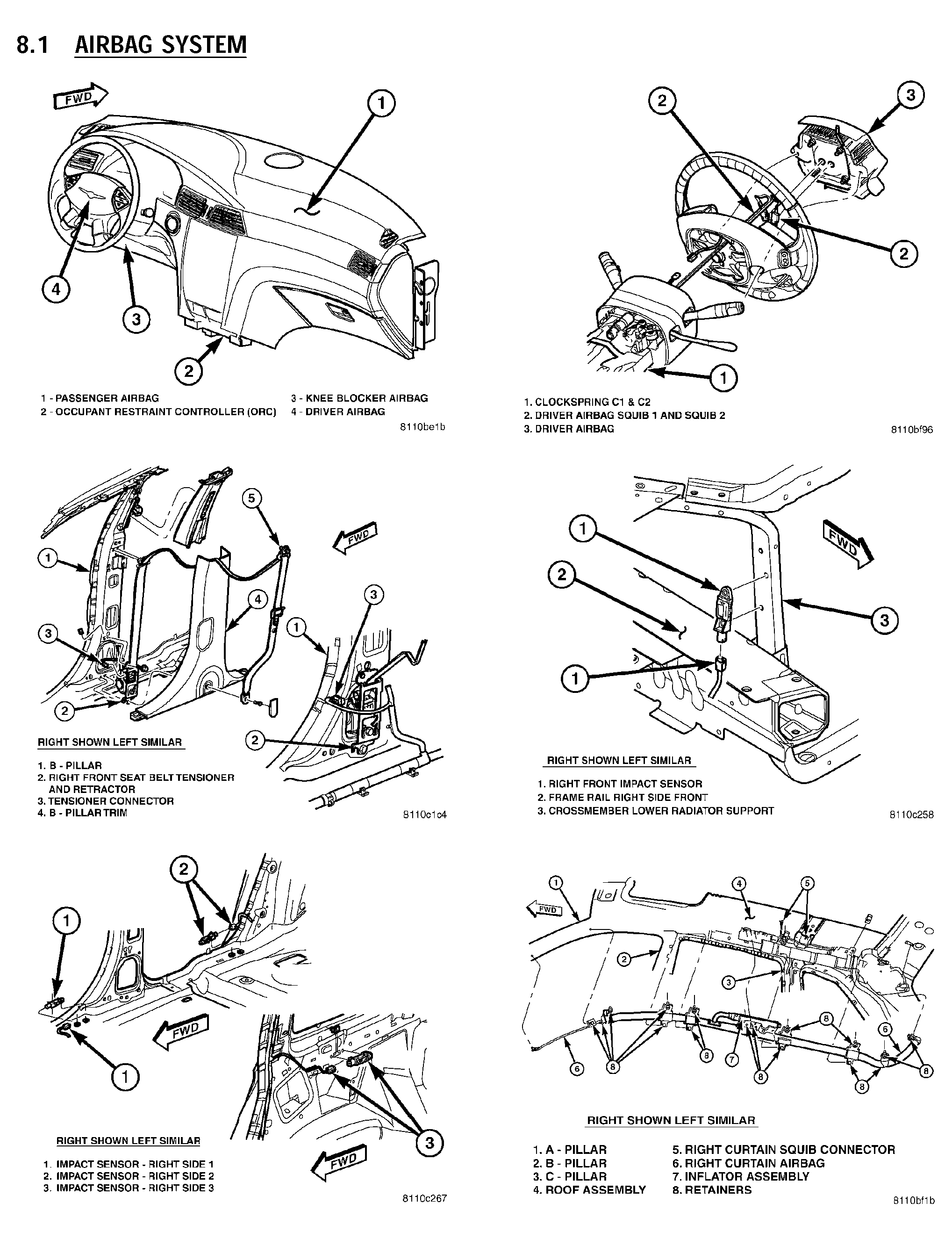

Fig 1: Identifying Airbag System Component Locations (1 Of 2)
G04528149Courtesy of DAIMLERCHRYSLER CORP.

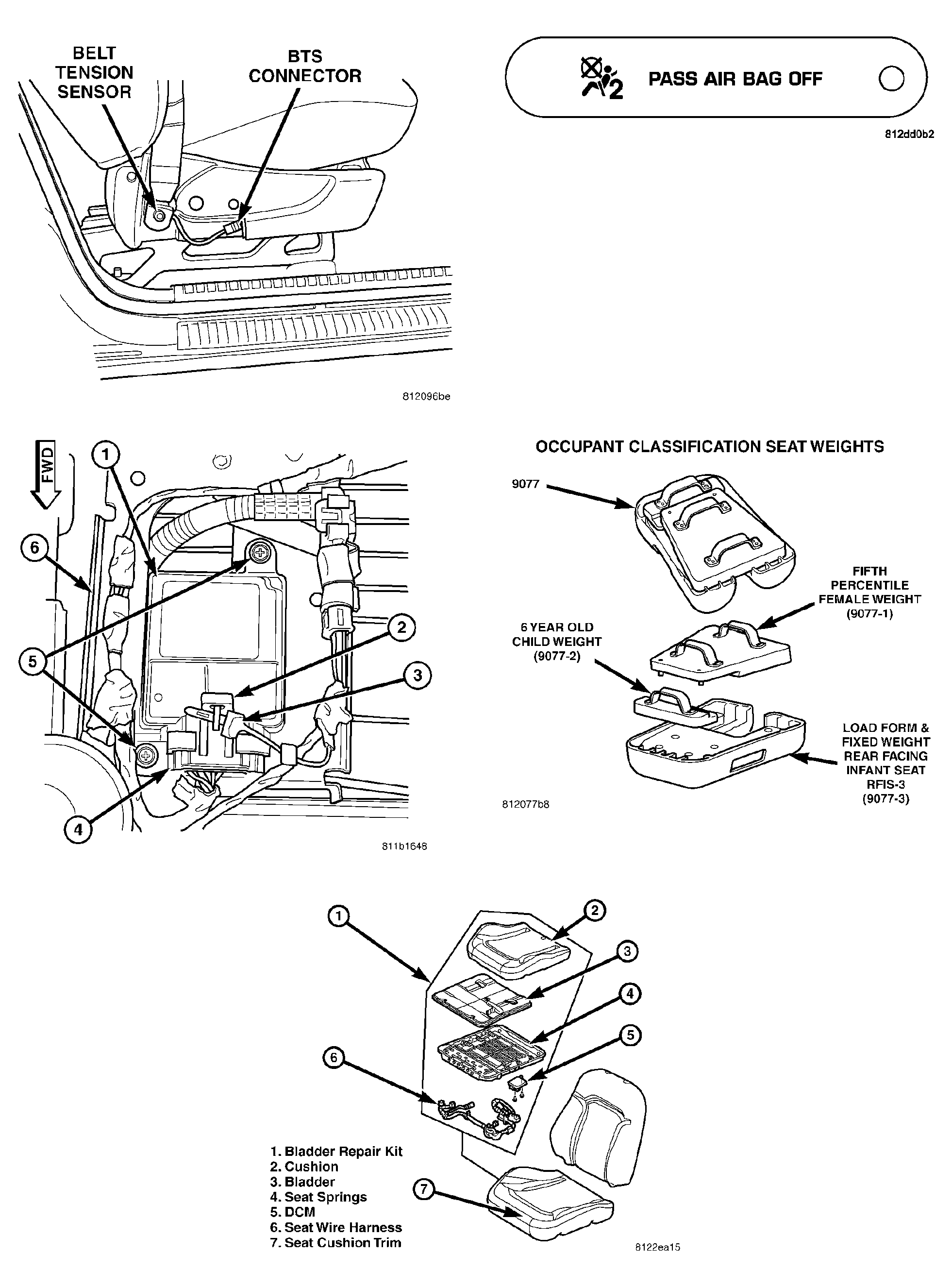

Fig 2: Identifying Airbag System Component Locations (2 Of 2)
G04528150Courtesy of DAIMLERCHRYSLER CORP.
