Rear Door Opening Weatherstrip: Removal

  1. Open front door.
  2. Remove rear door sill scuff plate.
  3. Pull rear door weatherstrip from door opening fence. See Fig 1.
  4. Remove door opening weatherstrip from vehicle.

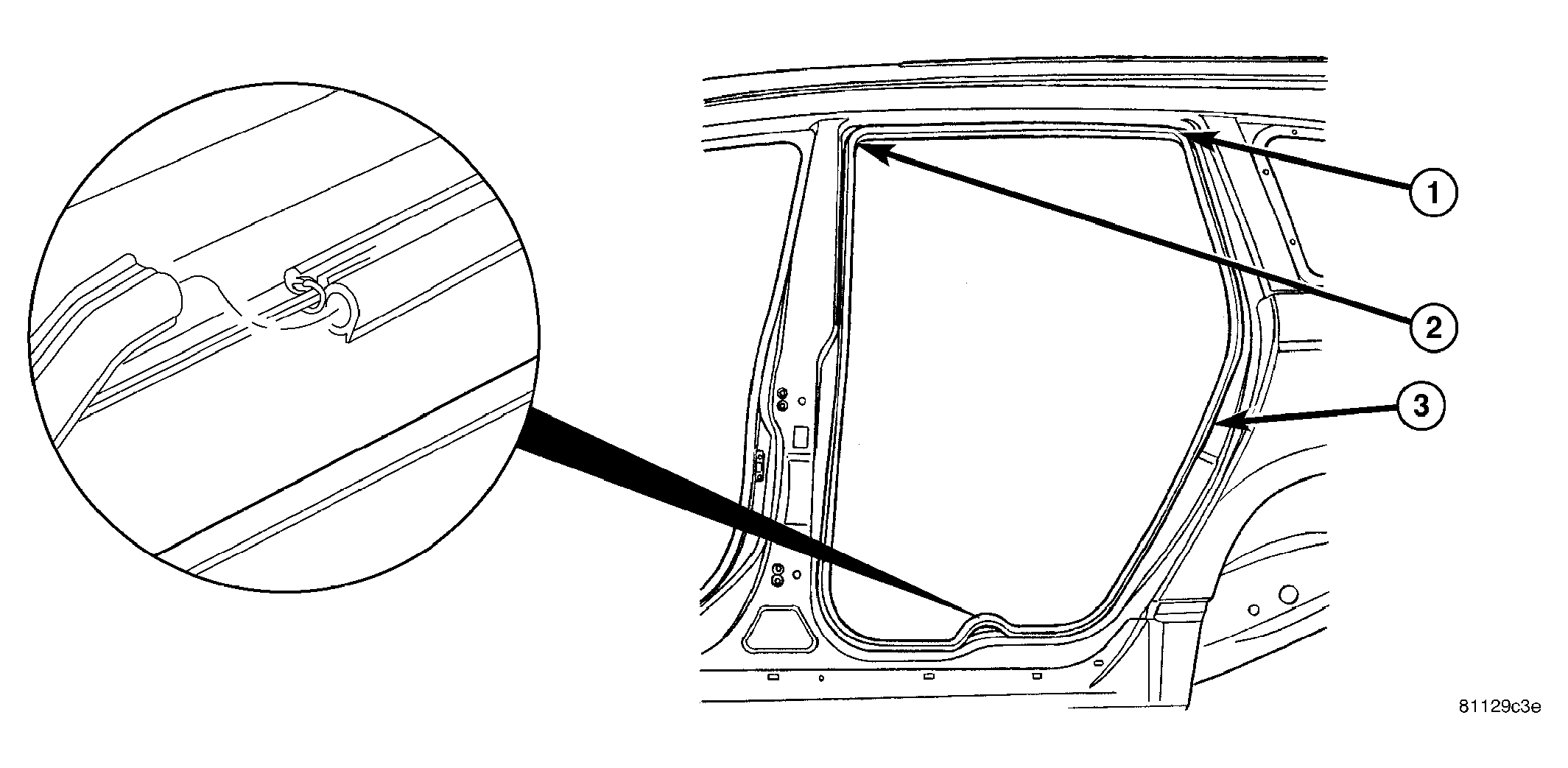

Fig 1: REAR DOOR OPENING WEATHERSTRIP
GC0001249Courtesy of DAIMLERCHRYSLER CORP.
1 - C-PILLAR STARTING POINT
2 - B-PILLAR CORNER
3 - REAR DOOR OPENING WEATHERSTRIP
