Rear Door Mounted Weatherstrip: Removal

Open front door.
Using a trim stick C-4755 or equivalent, disengage the push pins attaching rear door mounted weatherstrip to door frame. See Fig 1.
Remove weatherstrip from door frame.

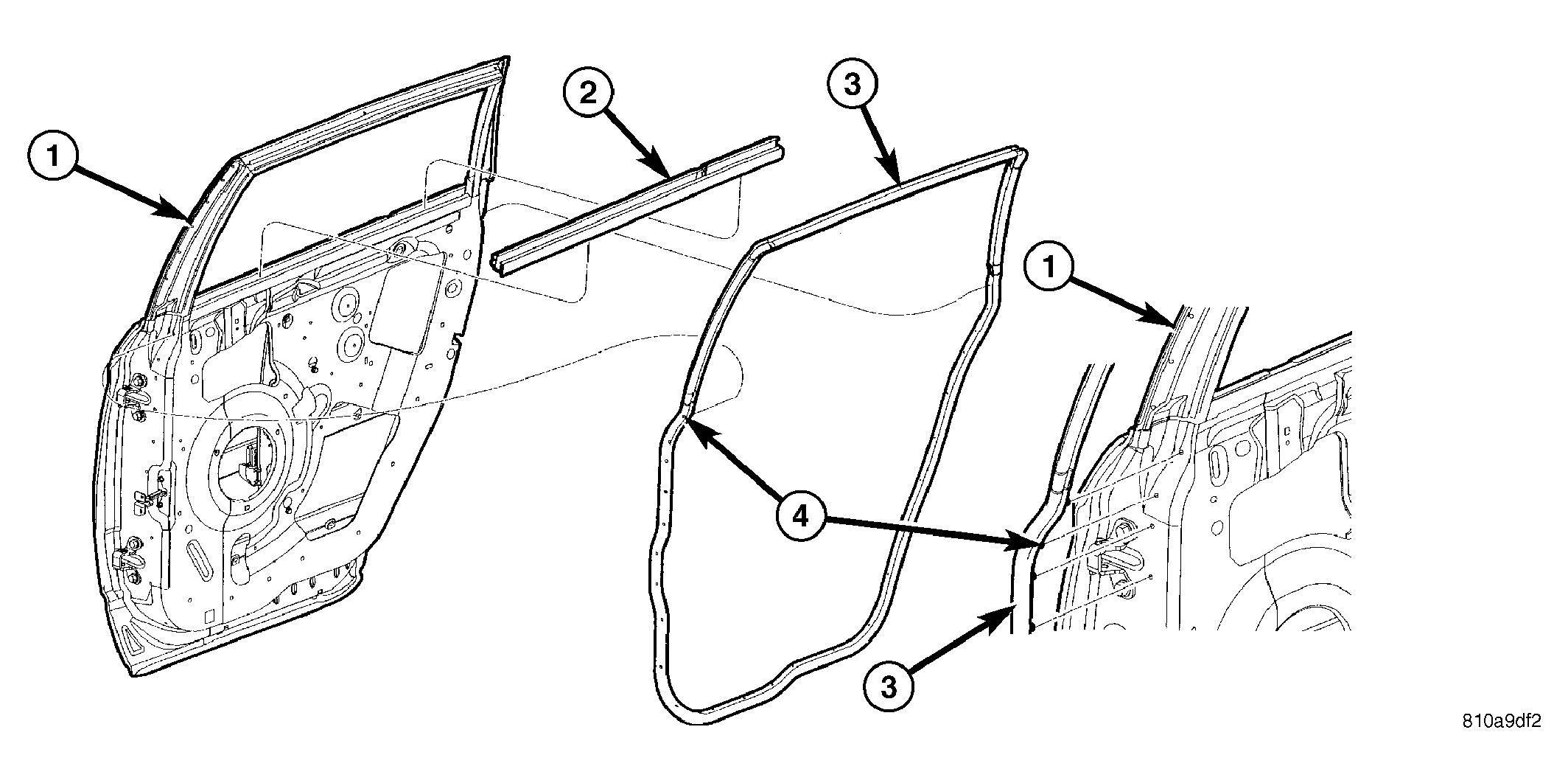

Fig 1: DOOR MOUNTED WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR ASSEMBLY

2 - REAR DOOR BELT INNER WEATHERSTRIP

3 - REAR DOOR MOUNTED WEATHERSTRIP

4 - WEATHERSTRIP PUSH PINS (25)
