Rear Door Header Weatherstrip: Removal

Open rear door.
Using a trim stick C-4755 or equivalent, disengage the push pins attaching rear door header weatherstrip to door frame. See Fig 1.
Remove weatherstrip from door.

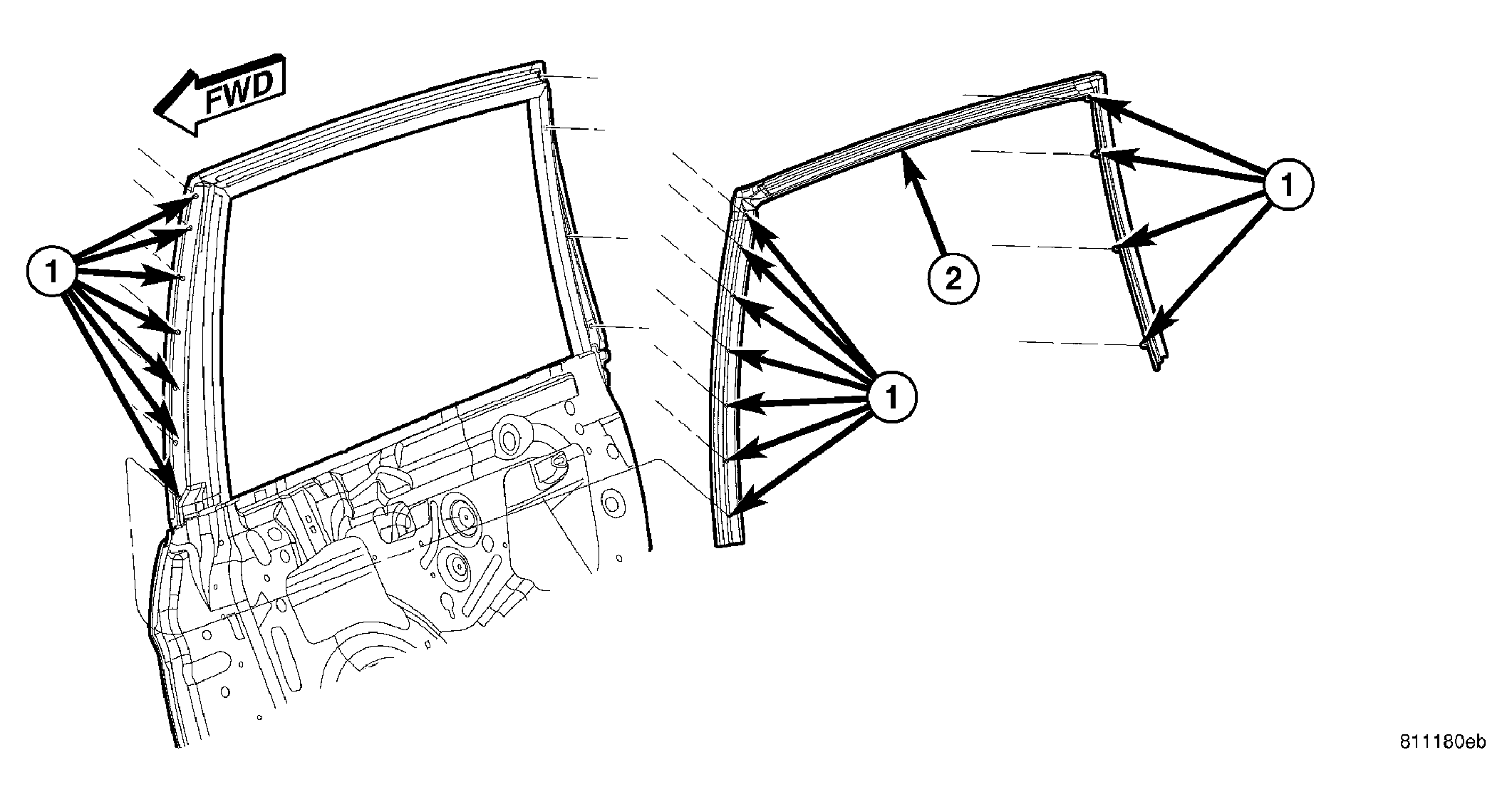

Fig 1: DOOR HEADER WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PINS

2 - HEADER WEATHERSTRIP
