Liftgate Opening Weatherstrip: Removal
- Open liftgate door.
- Remove liftgate sill scuff plate.

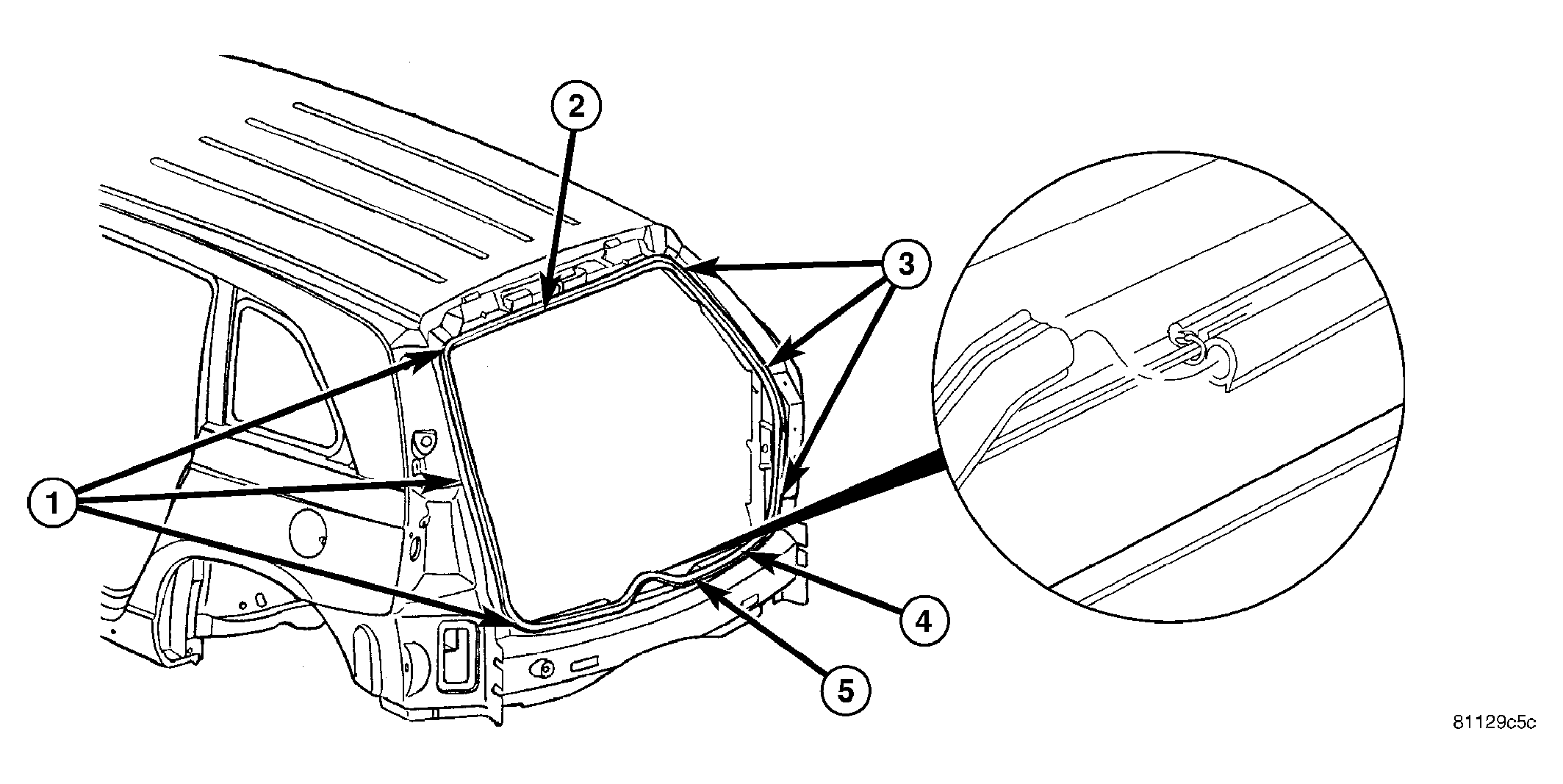

- Pull Liftgate door weatherstrip from liftgate opening fence. See Fig 1.
- Remove liftgate opening weatherstrip from vehicle.
| 1 - LEFT SIDE STARTING POINT |
| 2 - UPPER LIFTGATE OPENING |
| 3 - SECURE UPPER AND LOWER CORNERS |
| 4 - LOWER RIGHT SIDE CORNER AND CONNECTION POINT |
| 5 - ALIGN END OF WEATHERSTRIP TO SECOND SLOT LEFT OF STRIKER HOLE |
