Front Door Opening Weatherstrip: Removal

1. Open front door.
2. Remove front door sill scuff plate.
3. Pull front door weatherstrip from door opening fence. See Figure and Fig 1.
4. Remove door opening weatherstrip from vehicle.

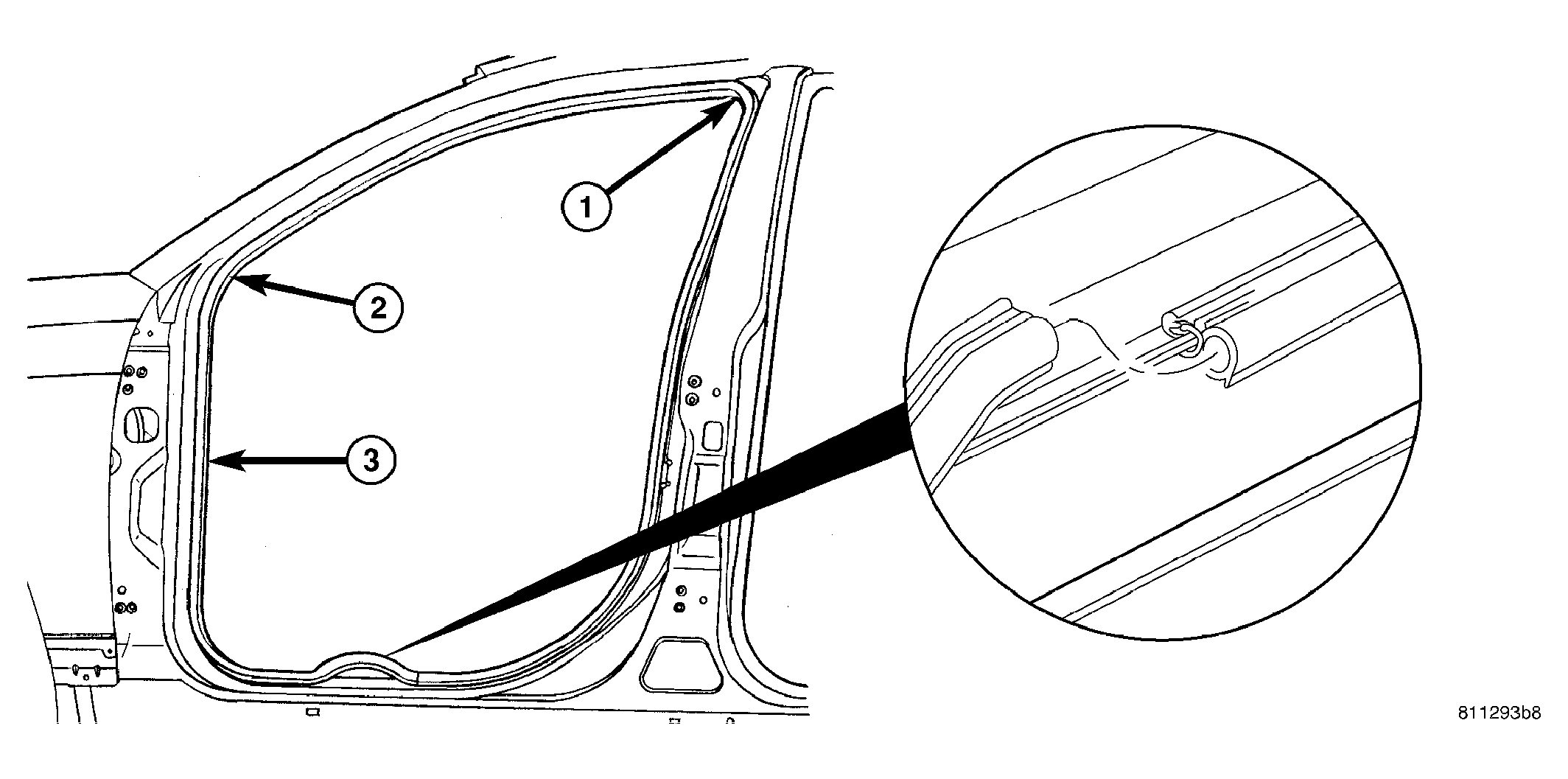

Fig 1: FRONT DOOR OPENING WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - B-PILLAR STARTING POINT

2 - VERIFY INSTALLATION OF A-PILLAR CORNER AND BELTLINE

3 - FRONT DOOR OPENING WEATHERSTRIP
