Front Door Mounted Weatherstrip: Removal

1. Open front door.
2. Using a trim stick C-4755 or equivalent, disengage the push pins attaching front door mounted weatherstrip to door frame. See Fig 1.
3. Remove weatherstrip from door frame.

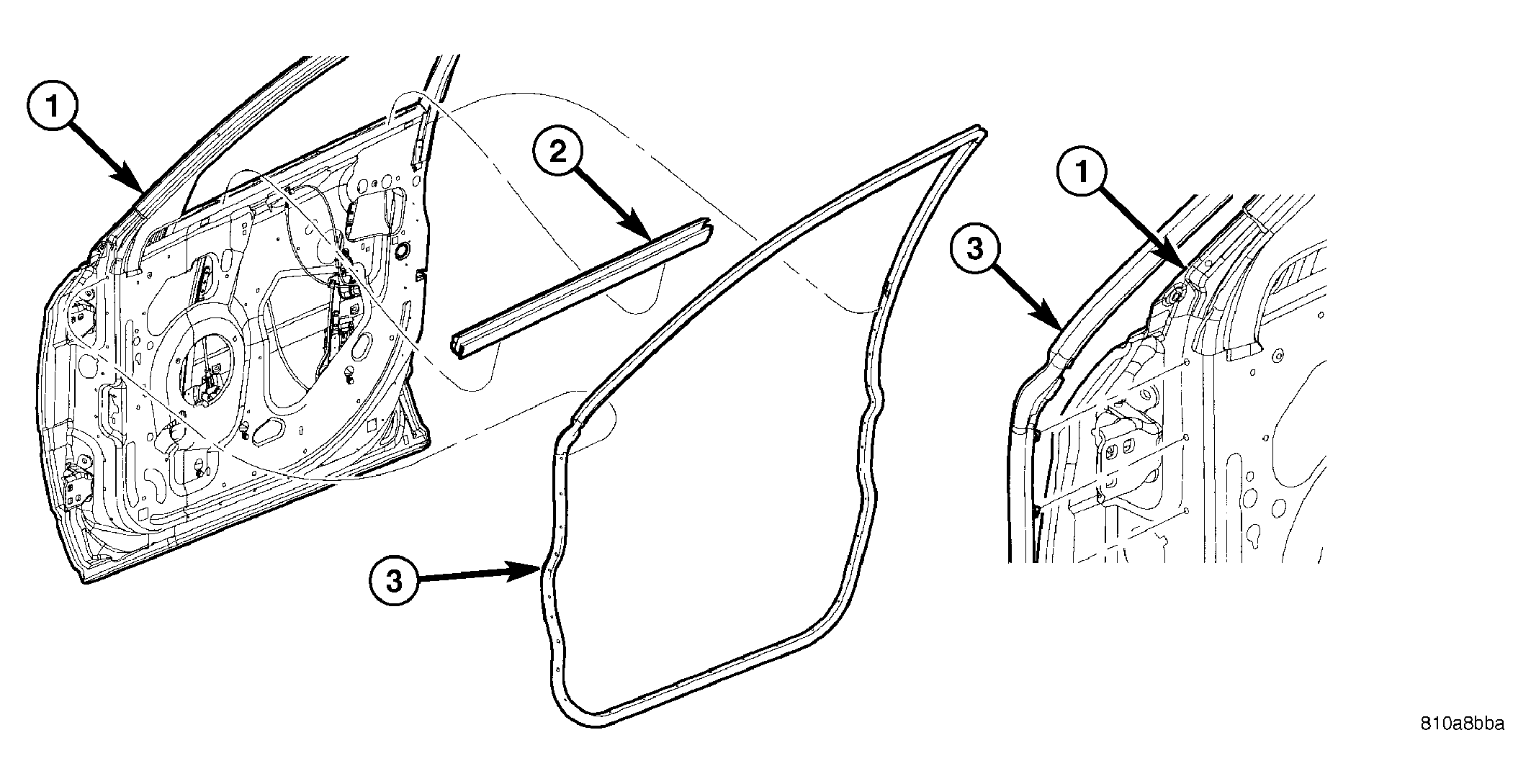

Fig 1: DOOR BELT INNER AND MOUNTED WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR ASSEMBLY

2 - FRONT DOOR BELT INNER WEATHERSTRIP

3 - FRONT DOOR MOUNTED WEATHERSTRIP
