Front Door Header Weatherstrip: Removal

Open front door.
Using a trim stick C-4755 or equivalent, disengage the plastic pins attaching front door header weatherstrip to door frame. See Fig 1.
Remove weatherstrip from door.

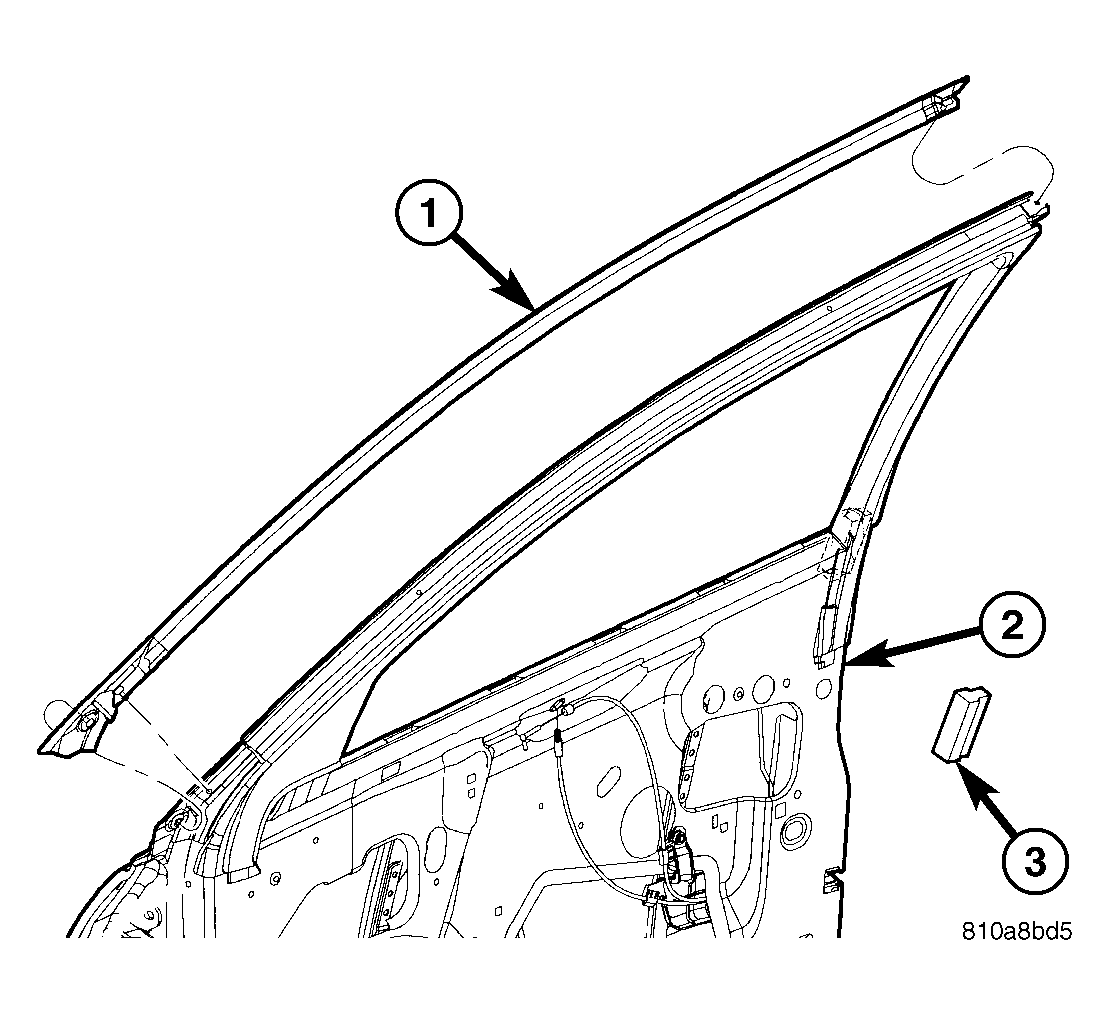

Fig 1: DOOR HEADER WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR WEATHERSTRIP

2 - DOOR ASSEMBLY

3 - CHANNEL STUFFER
